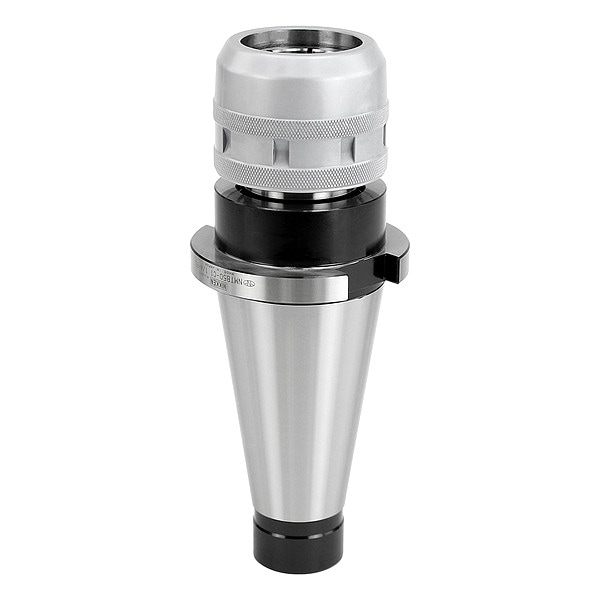

Milling Chuck Holder, NMTB50, Nose 2.717in
Mfr # NMTB50-C1.1/4-90
Zoro # G0538076
product price:Â $824.99
/ea
Free Shipping & Returns
Key Features
Collet Series
KM1.1/4
Hole Dia.
1-1/4 in
Bore Depth
2.07 in
Coolant Through
Yes
Projection
3.15 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
NMTB50-C1.1/4-90
Zoro #
G0538076
UPC #
-
Country of Origin
Japan
Dimensions
Hole Dia.
1-1/4 in
Bore Depth
2.07 in
Nose Dia.
2.7100 in
Taper Size
BT40
Bore Diameter
1 in
Nose Diameter
2.36 in
Details
Collet Series
KM1.1/4
Item
Milling Chuck
Coolant Through
Yes
Projection
3.15 in
Coolant Fed
Coolant Through
Clamping Range
3/16 in to 1-1/4 in
Features
140% More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
TIR Max.
Less Than 0.0002 in
Measurement System
Inch
Coolant Supply
Coolant Through
Product Type
Milling Chuck
Compatible Reducing Sleeve
KM1.1/4
Description
Milling Chuck, Taper Size BT40, Hole Dia. 1-1/4 in, Nose Dia. 2.7100 in, Collet Series KM1.1/4, Projection 3.15 in, Coolant Fed Coolant Through, Bore Depth 2.07 in, Clamping Range 3/16 in to 1-1/4 in, Features 140 Percent More Bearing Surface than Competitor Milling Chucks;For Quiet and Stable Heavy Milling;Nikken Patented Design;Nut Body Contact, Nose Clamping and Anti-Vibration Mechanism;Thick Body and Internal Slots Provide Extremely Strong Chucking Torque and Rigidity
