  13. 3 Phase Monitor Relay, SPDT, 480VAC, 8 Pin

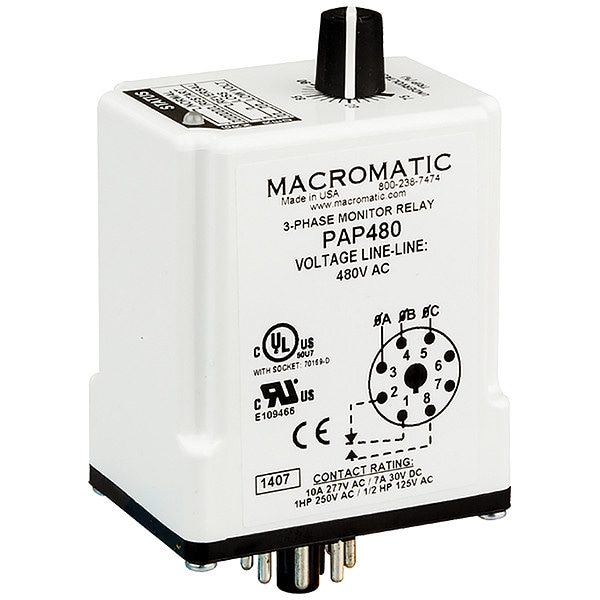

Macromatic 3 Phase Monitor Relay, SPDT, 480VAC, 8 Pin PAP480 - main

3 Phase Monitor Relay, SPDT, 480VAC, 8 Pin

  • Mfr # PAP480

  • Zoro # G0480286

product price: $78.19
/ea
Free Shipping & Returns

Key Features

Input or Control Voltage
480V AC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
7A @ 30V
Base Type - Plug In Relay
Octal
Number of Pins - Relay
8
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PAP480
Zoro #
G0480286
UPC #
801262035003
Country of Origin
United States

Dimensions

Body Depth - Relay
2.4 in
Body Height - Relay
2.9 in
Body Width - Relay
1.7 in
Overall Height - Relay
3.5 in
Overall Depth
2.4 in
Body Depth
2.9 in
Body Height
2.4 in
Body Width
1.7 in

Details

Item
Phase Monitor Relay
Input or Control Voltage
480V AC
AC Contact Rating - Relay
10A @ 277V
DC Contact Rating - Relay
7A @ 30V
Base Type - Plug In Relay
Octal
Number of Pins - Relay
8
Mounting - Relay
Plug In
Contact Form - Relay
SPDT
Over Voltage
No
Under Voltage
360 to 460V AC
Phase Loss Sensitivity
Yes
Phase Loss Time Delay
0.1 sec
Phase Reversal
Yes
Phase Reversal Time Delay
0.1 sec
Phase Unbalance
No
Restart
Auto
Restart Time Delay
1 sec
Socket
5X852
Phase
3
Contact Amp Rating (Resistive)
10
Item - Relay
Phase Monitor Relay
Pins
8
Input Voltage
480V AC
Power Rating
3
Contact Form
SPDT
Trip Delay
Power Up and Restart After Fault Clear: 1 sec., Drop-Out Due to Fault: 100 msec., Phase Loss and Reversal: 4 sec., Undervoltage: 4 sec.
Base Type
Octal
Number of Contacts
1
Drop-Out Range
75% to 95%
Pick Up Range
360 to 460VAC
Input or Control Voltage Range
480VAC
Standards
CE Certified, cULus Listed, cURus
Overvoltage
Adjustable 75-95% of the Line Voltage Setting
Socket Code
A
Monitored Parameters
Phase Loss, Phase Reversal, Undervoltage
Maximum Switching Capacity
40 VA
Minimum Operating Temperature
-18.4 Degrees F
Current Rating
10 A
Electrical Operating Durability
100,000
Base Shape
Octal
For Use With
Sensors
Maximum Switching Voltage
460V
Contact Rating (DC)
7 A @ 30V
Contact Rating (AC)
10 A @ 277V
Mounting Style
Plug-In
Frequency
50/60 Hz
Mechanical Operating Durability
10,000,000
Maximum Operating Temperature
149 Degrees F
Number of Pins
8
Power Consumption
40 VA
Undervoltage
360 to 460V AC
Minimum/Maximum Voltage
156-198V (PAP208); 180-230V (PAP240); 330-380V (PAP400); 360-460V (PAP480); 431-546V (PAP575), all 50/60Hz. ±5%
Life
Mechanical: 10,000,000 operations, Full Load: 100,000 operations
Output Contacts
10A @ 277V AC / 7A @ 30V DC;DPDT 5A @ 277V AC, 5A@30V DC,1/3HP @ 120/240V AC, B300 Pilot Duty
Output
10A SPDT
Reset
Automatic upon correction of fault.
Protection
Phase Loss, Phase Reversal & Undervoltage
Enclosure Style
Plug-in case utilizing industry-standard 8 or 11 pin octal sockets, Plug-in
Temperature
-28°to 65°C (-18°to 149°F)
Load (Burden)
Less than 40 VA
Monitored Voltage
480V AC
Configuration / Contact Rating
SPDT/DPDT. 10A @ 277V AC / 7A @ 30V DC /5A@ 277V AC / 5A @ 30V DC

Description

Phase Monitor Relay, Base Shape Octal, Contact Form SPDT, Contact Rating (AC) 10 A @ 277V, Contact Rating (DC) 7 A @ 30V, Current Rating 10 A, Input Voltage 480V AC, Monitored Parameters Phase Loss, Phase Reversal, Undervoltage, Number of Pins 8, Restart Auto, Restart Time Delay 1 sec, Mounting Style Plug-In, Body Depth 2.9 in, Body Height 2.4 in, Body Width 1.7 in, Electrical Operating Durability 100,000, For Use With Sensors, Frequency 50/60 Hz, Maximum Operating Temperature 149 Degrees F
