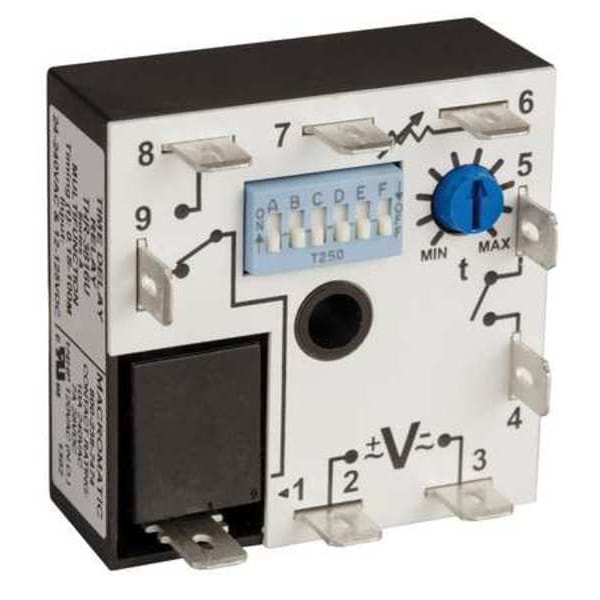

Multifunction Time Delay Relay, Square, 4 Functions 12 to 125V DC, 24 to 240V AC, SPDT

  • Mfr # THR-3836U

  • Zoro # G5126545

product price:  $63.29
/ea

Key Features

Delay Function
Flasher OFF 1st, Flasher On 1s, Single Shot Falling Edge, Watchdog
Number of Delay Functions
4
Minimum Time Setting
0.1 sec
Maximum Time Setting
100 min
Base Shape
Square
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
THR-3836U
Zoro #
G5126545
UPC #
801262084629
Country of Origin
United States

Dimensions

Overall Height - Relay
1.14 in
Body Depth
0.79 in
Overall Depth
1.14 in
Body Width
2 in
Body Height
2 in

Details

Item
Multifunction Time Delay Relay
Delay Function
Flasher OFF 1st, Flasher On 1s, Single Shot Falling Edge, Watchdog
Number of Delay Functions
4
Minimum Time Setting
0.1 sec
Maximum Time Setting
100 min
Base Shape
Square
Number of Pins
9
Coil Voltage
12 to 125V DC, 24 to 240V AC
Current Rating
24 A
Contact Form
SPDT
Contact Rating (AC)
24 A @ 240V AC
Contact Rating (DC)
12 A @ 125V DC
Standards
UL Listed
Input Voltage
12 to 125V DC, 24 to 240V AC
Operating Functions
3,6,11
Status Indicator
None
Type of Output
Relay
Timer Range
0.10 sec. to 100 min.
Input or Control Voltage Range
24 to 240VAC, 12 to 125VDC
Adjustment Method
Dip Switch
Contact Amp Rating (Resistive)
10A
Contact Material
Silver Nickel
Electrical Connection
Screw Terminal
Sealing
Enclosed
Adjustment Interface
Analog
Operating Time Accuracy
+0% -50% (Minimum Setting (Adjustable)), +5% -0% (Maximum Setting (Adjustable))
Electrical Operating Durability
100,000
Mechanical Operating Durability
10,000,000
Frequency
50/60 Hz
Minimum Operating Temperature
-18 Degrees F
Reset Method
Time-Limit Reset
Maximum Operating Temperature
149 Degrees F
Power Consumption
2 VA
Mounting Style
Surface

Description

Multi-Function Encapsulated Timing Relay, Adjustment Method Dip Switch, Base Shape Square, Coil Voltage 12 to 125V DC, 24 to 240V AC, Contact Form SPDT, Contact Rating (AC) 24 A @ 240V AC, Contact Rating (DC) 12 A @ 125V DC, Current Rating 24 A, Number of Delay Functions 4, Delay Function Flasher OFF 1st, Flasher On 1s, Single Shot Falling Edge, Watchdog, Electrical Connection Screw Terminal, Input Voltage 12 to 125V DC, 24 to 240V AC, Minimum Time Setting 0.1 sec, Maximum Time Setting 100 min
