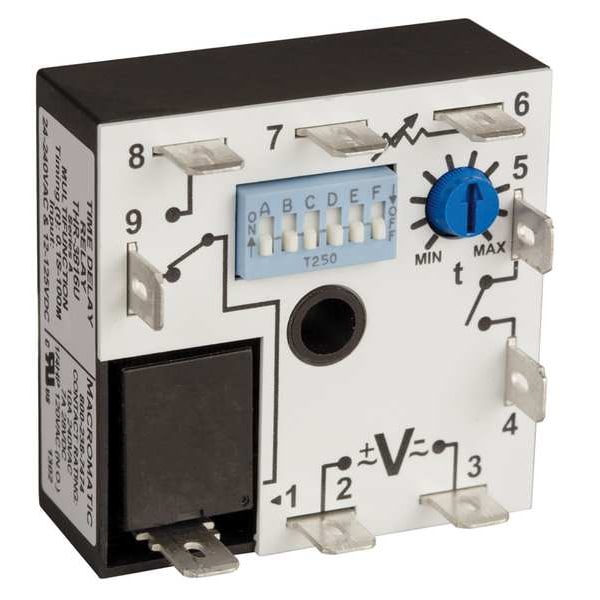

Multifunction Time Delay Relay, Square, Interval, Off Delay, On Delay, Single Shot, 4 Functions
Mfr # THR-3816U
Zoro # G5126536
CAD Available
product price: $71.69
/eaKey Features
CAD Drawing
Delay Function
Interval, Off Delay, On Delay, Single Shot
Number of Delay Functions
4
Minimum Time Setting
0.1 sec
Maximum Time Setting
100 min
Base Shape
Square
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
THR-3816U
Zoro #
G5126536
UPC #
801262084612
Country of Origin
United States
Dimensions
Overall Height - Relay
1.14 in
Overall Depth
1.14 in
Body Height
2 in
Body Depth
0.79 in
Body Width
2 in
Description
Multi-Function Encapsulated Timing Relay, Adjustment Method Dip Switch, Base Shape Square, Coil Voltage 12 to 125V DC, 24 to 240V AC, Contact Form SPDT, Contact Rating (AC) 24 A @ 240V AC, Contact Rating (DC) 12 A @ 125V DC, Current Rating 24 A, Number of Delay Functions 4, Delay Function Interval, Off Delay, On Delay, Single Shot, Electrical Connection Screw Terminal, Input Voltage 12 to 125V DC, 24 to 240V AC, Minimum Time Setting 0.1 sec, Maximum Time Setting 100 min, Number of Pins 9
