Shop TELEMECANIQUE SENSORS

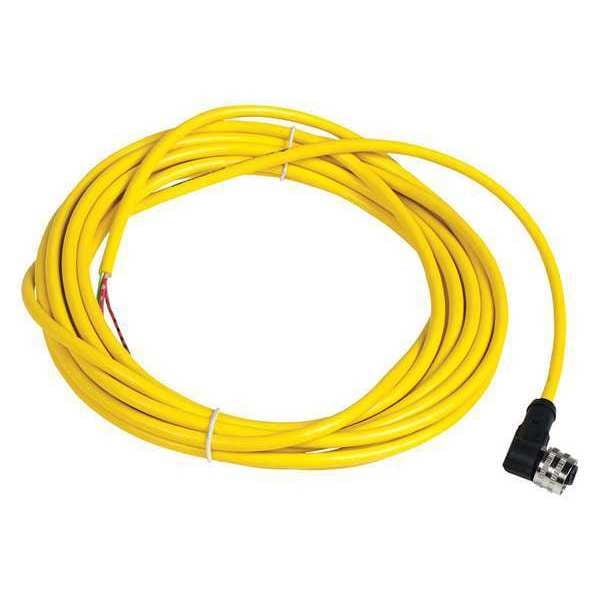

Cordset, 16.4 ft., Yellow, 250VAC/300VDC

  • Mfr # XZCPV1965L5
  • Zoro # G5400963
product price:
$
29.79
/ea

Key Features

Product Type
Single Ended
End 1 Number of Pins
3
Wire Size
18 AWG
Cable Length
16.4 ft
Cable Jacket Material
PVC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
XZCPV1965L5
Zoro #
G5400963
UPC #
785901578062
Country of Origin
Poland
Item
Cordset
Product Type
Single Ended
End 1 Number of Pins
3
Cable Jacket Material
PVC
Cable Jacket Color
Yellow
IP Rating
IP65, IP67
Max. Amps
4 A
Maximum Operating Temperature
176 Degrees F
Temp. Range
-13 Degrees to 176 Degrees F
Number of Conductors
3
End 1 Thread
1/2"-20
Features
Good Resistance to Moderate Mechanical Stress, Chemical Products and Humid Environments, Easy Cable Stripping
End 2 Gender and Plug End
Bare Wire
End 1 Connection Type
1/2 in
End 1 Gender and Plug End
Female Right Angle
Max. Voltage
250 V AC, 300 V DC
Standards
CSA Certified, IEC, UL Listed
End 1 Keyway
Single
End 2 Connection Type
Bare Wire
Color
Green, Red/Black, Red/White
End 1 Number of Keyways
1
End 1 Mounting Orientation
Right Angle
End 1 Gender
Female
Number of Wires
3
Minimum Operating Temperature
-13 Degrees F
Cable Connector Fixing
screw-on
Line Rated Current
4A
Product Certifications
cULus
[Ue] Rated Operational Voltage
250 V AC || 300 V DC
Cable Composition
3 x 0.34 mm²
Series Name
general purpose
Accessory / Separate Part Category
cabling accessory
Accessory / Separate Part Type
pre-wired connectors
Minimum Insulating Resistance
1 GΩ
Electrical Connection
elbowed female connector 1/2"20 UNF, 3 pins
Status Led
without
Collar Material
metal
Ambient Air Temperature For Operation
-25-80°C static
Ambient Air Temperature For Storage
-25-80°C
Contact Resistance
5000µOhm

Dimensions

Wire Size
18 AWG
Cable Length
16.4 ft
Cable Outer Diameter
5.2 mm
Fits Chest Size
Good Resistance to Moderate Mechanical Stress, Chemical Products and Humid Environments, Easy Cable Stripping

Description

Cordset, End 1 Gender Female, End 1 Thread 1/2 In.-20, End 1 Number of Pins 3, End 1 Mounting Orientation Right Angle, End 1 Connection Type 1/2 in, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 5 m, Cable Jacket Color Yellow, Cable Jacket Material PVC, Max. Amps 4 A, Wire Size 18 AWG, Maximum Operating Temperature 176 Degrees F, Minimum Operating Temperature -13 Degrees F, IP Rating IP65, IP67, Standards CSA Certified, IEC, UL Listed
