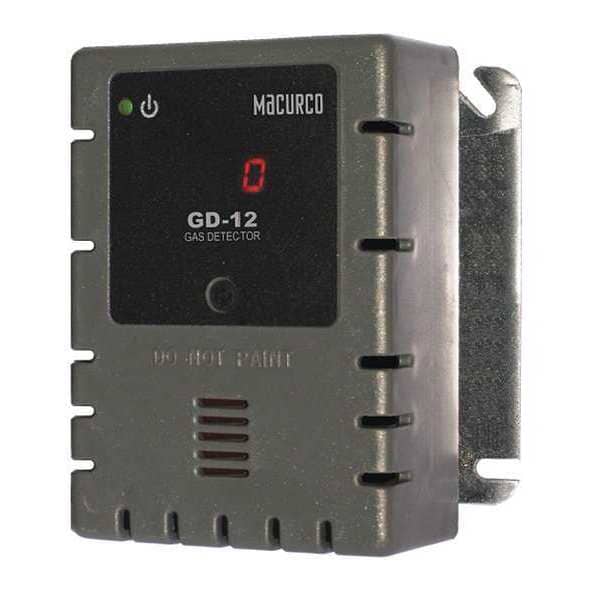

Macurco Fixed Gas Detector, CH4, C3H8, H2, Digital GD-12 - main

Fixed Gas Detector, CH4, C3H8, H2, Digital

  • Mfr # GD-12

  • Zoro # G0461590

product price: $611.99
/ea
Free Shipping & Returns

Key Features

For Use With
Building Automation Systems, Burglary Alarm Panels, Fire Alarm Panels, 36CF90, 48GT51, 48GT52
Gas Detected
Hydrogen, Methane, Propane
Chemical Formula
C3H8, CH4, H2
Sensor Range
0 to 50% LEL
Operating Temp. Range
0 Degrees to 125 Degrees F (-18 Degrees to 52 Degrees C)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
GD-12
Zoro #
G0461590
UPC #
051135890387
Country of Origin
United States

Dimensions

Depth
2 1/8 in
Height
4 1/2 in
Width
4 in
Manufacturer Warranty Length
2 yr
Overall Height
4.5 in
Overall Width
2.12 in
Overall Depth
4 in

Details

Item
Fixed Gas Detector
For Use With
Building Automation Systems, Burglary Alarm Panels, Fire Alarm Panels, 36CF90, 48GT51, 48GT52
Gas Detected
Hydrogen, Methane, Propane
Chemical Formula
C3H8, CH4, H2
Sensor Range
0 to 50% LEL
Operating Temp. Range
0 Degrees to 125 Degrees F (-18 Degrees to 52 Degrees C)
Resolution
1% LEL
Features
Selectable Target Gas and Relay Actuation Settings
Gas Type
C3H8, CH4, H2
Includes
Manual
Status Indicator
LED
Power Required
100 to 240V AC (50 to 60 Hz)
Alarm Type
Audible and Visual
Connection
Plugs/Terminals
Display
LED
Number of Channels
2
Standards
cETLus Certified
Color
Gray
IP Rating
Not Rated
Product Type
Stand-Alone Detector & Controller or Transducer
Number of Digits
3
Operating Humidity - Maximum
90 %
Series
Commercial Series
Number of Relays
2
Operating Temperature - Minimum
-4 Degrees F
Visual Alert Type
Green LED
Alert Type
Internal Buzzer
Operating Temperature - Maximum
122 Degrees F
Output Type
Analog
Display Screen Type
LED
Input Current
1.0 A
Sensor Type
Catalytic
Operating Frequency
50 to 60 Hz
Sensor Life
5 yr
Ties Into
Building Automation Panels, Fire Alarm Panels
Market
Commercial
Display Type
Digital
Number of Gases Detected
3
Output Current
4 to 20 mA
Output Channels
2
Interchangeable Sensors
No
Operating Humidity - Minimum
10 %
NEMA Enclosure Rating
Not Rated
Mount Type
Bolts/Screws
Coverage Area
900 sq ft
Power Source
Hardwired
Sub-Brand
Macurco
For Environment
Hazardous Locations
Measurement Range
Propane Methane Hydrogen (0 to 50% LEL)
Alarm Setting Adjustment
Adjustable Alarm Setting
Housing Color
Gray
Operating Voltage
100 to 240V AC
Voltage
100 to 240V AC

Description

Fixed Gas Detector, For Use With Building Automation Systems, Burglary Alarm Panels, Fire Alarm Panels, 36CF90, 48GT51, 48GT52, Gas Detected Hydrogen, Methane, Propane, Standards cETLus Certified, Includes Manual, Product Type Stand-Alone Detector & Controller or Transducer, Mounting Location Wall, Number of Relays 2, Sensor Type Catalytic, Visual Alert Type Green LED, Display Type Digital, Operating Temperature - Minimum -4 Degrees F, Operating Temperature - Maximum 122 Degrees F
