  11. Gas Detection Control Panel, 12-1/2 in H

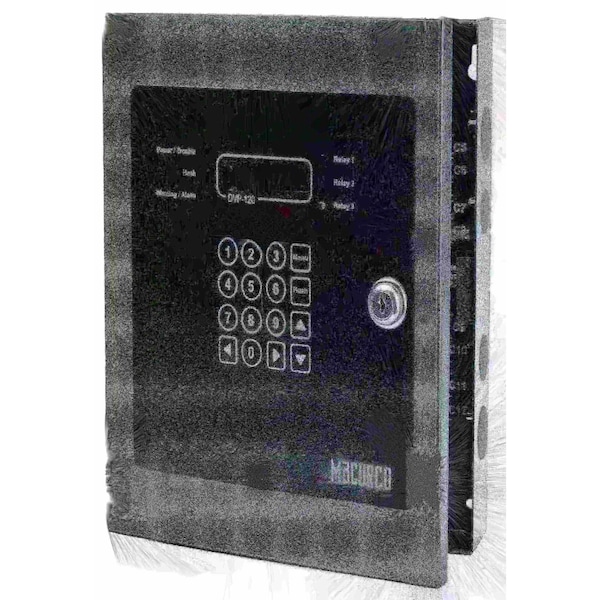

Macurco Gas Detection Control Panel, 12-1/2 in H DVP-120B - main

Gas Detection Control Panel, 12-1/2 in H

  • Mfr # DVP-120B

  • Zoro # G7409365

product price: $2,161.99
/ea
Free Shipping & Returns

Key Features

For Use With
Macurco Commercial 6-Series Gas Detectors with MRS-485 Adapter
Depth
2 in
Width
10 1/2 in
Height
12 1/2 in
Features
External Display Shows System and Sensor Status
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DVP-120B
Zoro #
G7409365
UPC #
857560007549
Country of Origin
United States

Dimensions

Depth
2 in
Width
10 1/2 in
Height
12 1/2 in
Overall Width
4 in
Overall Height
4.5 in
Manufacturer Warranty Length
2 yr
Overall Depth
2.13 in

Details

Item
Control Panel
For Use With
Macurco Commercial 6-Series Gas Detectors with MRS-485 Adapter
Features
External Display Shows System and Sensor Status
Output Rating
0.25A, BACnet MS/TP, 10A, 24V DC
Includes
(2) Keys, Screwdriver
Number of Inputs
99
Number of Outputs
6
Status Indicator
LED
Power Source
Hardwired, Screw Terminals
Alarm Type
Audible, Visual
Voltage
90 to 250V AC
Power Required
90 to 250V AC
Standards
BTL, cETLus Certified
Output Type
SPDT Relay
Series
Macurco Commercial Series
Display Type
Digital
Sub-Brand
Macurco
Lock Type
Lockable
Mount Type
Bolts/Screws
Operating Humidity - Maximum
90 %
IP Rating
Not Rated
Alert Type
Internal Buzzer
Ties Into
Automatic Fan Controls, Building Automation Panels, Burglary Alarm Panels, Fire Alarm Panels
For Environment
Hazardous Locations
Operating Humidity - Minimum
10 %
Alarm Volume Level
90 dBA @ 1ft
NEMA Enclosure Rating
1
Output Voltage
24V DC
Coverage Area
742,500 sq ft
For Number of Detectors
99
Operating Temperature - Minimum
-4 Degrees F
Operating Temperature - Maximum
122 Degrees F
Visual Alert Type
Digital Display, LED
Data Logger
No
Display Screen Type
LCD with Backlight
Input Channels
1
Number of Relays
3
Detectors Per Channel
33
Alarm Setting Adjustment
Adjustable Alarm Setting
Number of Digits
10
Operating Voltage
90 to 250V AC

Description

Fixed Gas Detection Control Panel
