Shop All Flow Rate Sensors
Madison

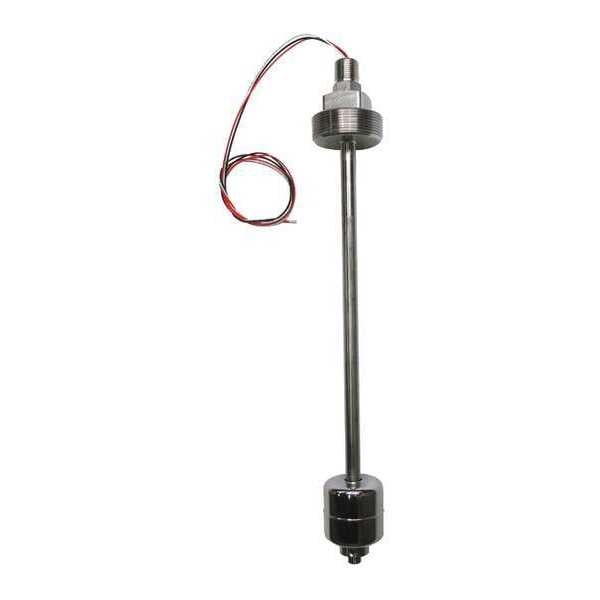

Continuous Level Transmitter, Stem 24" L

product price: $452.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Vertical
  • Signal Output 4 to 20mA
  • Voltage 12 to 30V DC
  • Overall Length 26.3 in
  • Float Dia. 2 1/8 in
See all product information

Product Information

Dimensions

Overall Length 26.3 in
Float Dia. 2 1/8 in
Stem Length 24 in
Float Length 2 1/8 in
Float Diameter 2 1/8 in
Connection Size 2 in

Details

Item Industrial Continuous Level Transmitter
Mounting Vertical
Signal Output 4 to 20mA
Voltage 12 to 30V DC
Float Material 316 Stainless Steel
Standards CE, cULus
Body Material 316 Stainless Steel
Accuracy +/-0.25 in
Specific Gravity 0.5
Probe Material 316 Stainless Steel
Wire Gauge 22 AWG
Fitting 2 in NPT
Stem Material 316 Stainless Steel
Probe Style Immersion
Enclosure Rating Not Rated
Max. Temp. 221 Degrees F
Max. Pressure 200 psi
Product Type Float Level Sensor
Output Voltage Range 4 to 20mA
Output Wire Configuration 2-Wire
Range 21.1 in
Mounting Orientation Vertical
For Media Type Chemicals, Nonhazardous Liquids
Nameplate Voltage 12/30V DC
Media Temperature - Maximum 221 Degrees F
Operating Pressure - Maximum 200 psi
Number of Outputs - Analog 1
Connection Type NPT
Specific Gravity - Maximum 0.5

Description

Industrial Continuous Level Transmitter, Product Type Float Level Sensor, Connection Size 2 in, For Media Type Chemicals, Nonhazardous Liquids, Connection Type NPT, Body Material 316 Stainless Steel, Accuracy +/-0.25 in, Range 21.1 in, Stem Length 24 in, Operating Pressure - Maximum 200 psi, Media Temperature - Maximum 221 Degrees F, Mounting Orientation Vertical, Enclosure Rating Not Rated, Number of Outputs - Analog 1, Float Diameter 2 1/8 in, Number of Outputs - Digital Not Applicable
