Shop MADISON

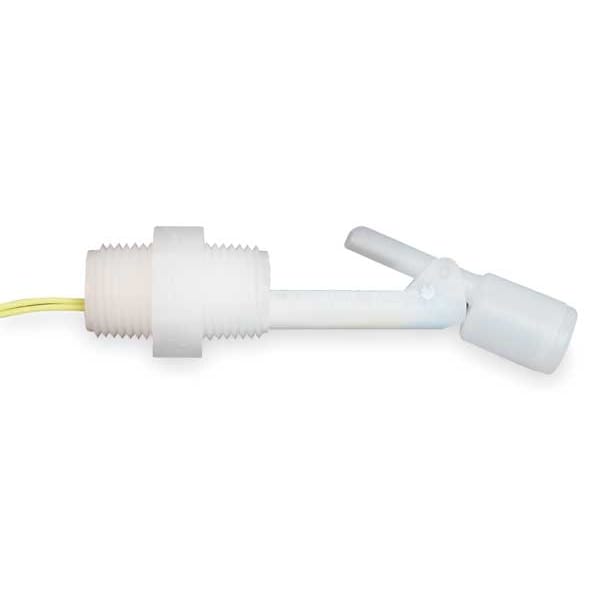

SPST Tank Liquid Level Switch Selectable 240VAC 100 psi

  • Mfr # M9700

  • Zoro # G1262791

product price:
$
30.19
/ea

Key Features

Voltage
240VAC
Max. Pressure
100 psi
Contact Form
SPST
Body Material
Kynar
Stem Material
Kynar
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
M9700
Zoro #
G1262791
UPC #
-
Country of Origin
United States
Voltage
240VAC
Max. Pressure
100 psi
Item
Alternator Closed Liquid Level Switch
Contact Form
SPST
Body Material
Kynar
Stem Material
Kynar
Float Switch Contact Form
SPST
Float Material
Kynar
Electrical Connections
22 ga PTFE Coated 24 in Leads
Max. Voltage
240 V
Float Specific Gravity
0.93
Operating Temp. Range
221 Degrees F Max.
Max. Current
0.28 A
Float Switch Float Material
Kynar
Mounting
Side
Standards
CE, NSF, UL Listed
Switch Function
Selectable
VA Rating
30
Features
Solvent Resistance
Product Type
Closed Liquid Level Switch
Current Rating - Maximum
0.28 A
Voltage Rating - Maximum
120 V AC, 240 V AC
Minimum Media Specific Gravity
1.13
Proof Pressure
100 psi
Electrical Connection
Pre-Wired Cable
Operating Temperature - Maximum
221 Degrees F
Mounting Style
Side
Switch Structure
SPST

Description

Alternator Closed Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 1/2 in x 1/2 in NPT, Max. Pressure 100 psi, VA Rating 30, Operating Temp. Range 221 Degrees F Max., Overall Length 2.75 in, Float Material Kynar, Float Length 2.11 in, Float Dia. 0.65 in, Stem Material Kynar, Stem Length 2.75 in, Height -, Width 0.6 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material Kynar, Conduit Size 1/2 in x 1/2 in, Standards CE, NSF, UL Listed
