Shop MADISON

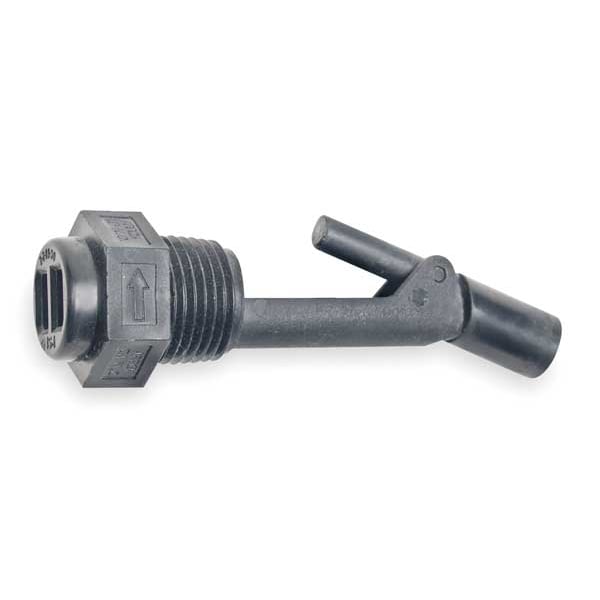

SPST Tank Liquid Level Switch Selectable 240VAC 100 psi

  • Mfr # M7725

  • Zoro # G1498217

product price:  $23.55
/ea

Key Features

Voltage
240VAC
Max. Pressure
100 psi
Width
0.6 in
Conduit Size
1/2 in
Stem Length
2.75 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M7725
Zoro #
G1498217
UPC #
-
Country of Origin
United States

Dimensions

Width
0.6 in
Conduit Size
1/2 in
Stem Length
2.75 in
Overall Length
4.3 in
Tank Connection Size
1/2 in NPT
Float Length
2.11 in
Float Dia.
0.65 in
Overall Width
0.6 in
Float Diameter
0.65 in
Stem Thread Size
1 in NPT
Wire Rope Length
4.3 in

Details

Voltage
240VAC
Max. Pressure
100 psi
Item
Alternator Closed Liquid Level Switch
Standards
CE, CSA, UL Listed
Switch Function
Selectable
Electrical Connections
22 ga MTW Coated 24 in Leads
Body Material
PBT
Operating Temp. Range
266 Degrees F Max.
Float Switch Contact Form
SPST
Mounting
Side
Max. Current
0.28 A
Stem Material
PBT
Float Material
PBT
Max. Voltage
240 V
VA Rating
30
Float Switch Float Material
Polybutylene Terephthalate
Float Specific Gravity
0.7
Contact Form
SPST
Series
M7725
Product Type
Closed Liquid Level Switch
Voltage Rating - Maximum
120 V AC, 240 V AC
Operating Temperature - Maximum
266 Degrees F
Proof Pressure
100 psi
Electrical Connection
Pre-Wired Cable
Minimum Media Specific Gravity
0.94
Current Rating - Maximum
0.28 A
Switch Structure
SPST
Mounting Style
Side

Description

Alternator Closed Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 1/2 in NPT, Max. Pressure 100 psi, VA Rating 30, Operating Temp. Range 266 Degrees F Max., Overall Length 4.3 in, Float Material PBT, Float Length 2.11 in, Float Dia. 0.65 in, Stem Material PBT, Stem Length 2.75 in, Height -, Width 0.6 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material PBT, Conduit Size 1/2 in, Standards CE, CSA, UL Listed
