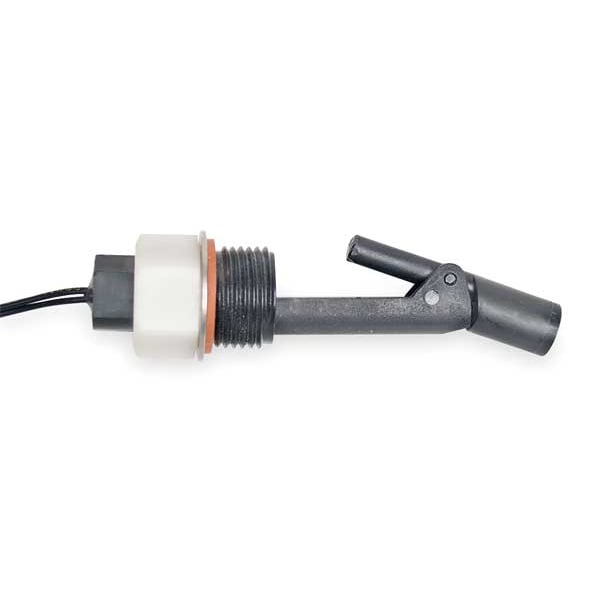

SPST Tank Liquid Level Switch Selectable 240VAC 100 psi

  • Mfr # M7740

  • Zoro # G3270967

product price:
$
21.39
/ea

Key Features

Voltage
240VAC
Max. Pressure
100 psi
Float Switch Float Material
Polybutylene Terephthalate
Mounting
Side
Width
1 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
M7740
Zoro #
G3270967
UPC #
-
Country of Origin
United States
Voltage
240VAC
Max. Pressure
100 psi
Item
Alternator Closed Liquid Level Switch
Float Switch Float Material
Polybutylene Terephthalate
Mounting
Side
Operating Temp. Range
266 Degrees F Max.
Standards
CE, CSA, UL Listed
VA Rating
30
Stem Material
PBT
Switch Function
Selectable
Float Specific Gravity
0.7
Body Material
PBT
Float Switch Contact Form
SPST
Contact Form
SPST
Max. Current
0.28 A
Electrical Connections
22 ga PTFE Coated 24 in Leads
Float Material
PBT
Max. Voltage
240 V
Product Type
Alternator Closed Liquid Level Switch
Proof Pressure
100 psi
Voltage Rating - Maximum
240 V AC
Electrical Connection
Pre-Wired Cable
Current Rating - Maximum
0.28 A
Minimum Media Specific Gravity
0.7
Operating Temperature - Maximum
266 Degrees F
Switch Structure
SPST
Mounting Style
Side

Description

Alternator Closed Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 3/4 In.-16 x 7/8 In.-14, Max. Pressure 100 psi, VA Rating 30, Operating Temp. Range 266 Degrees F Max., Overall Length 4.3 in, Float Material PBT, Float Length 2.11 in, Float Dia. 0.65 in, Stem Material PBT, Stem Length 3.31 in, Height -, Width 1 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material PBT, Conduit Size 3/4 in 16 in x 7/8 in 14, Standards CE, CSA, UL Listed
