  9. SPST Tank Liquid Level Switch Selectable 240VAC 100 psi
Shop All Level Switches
Madison

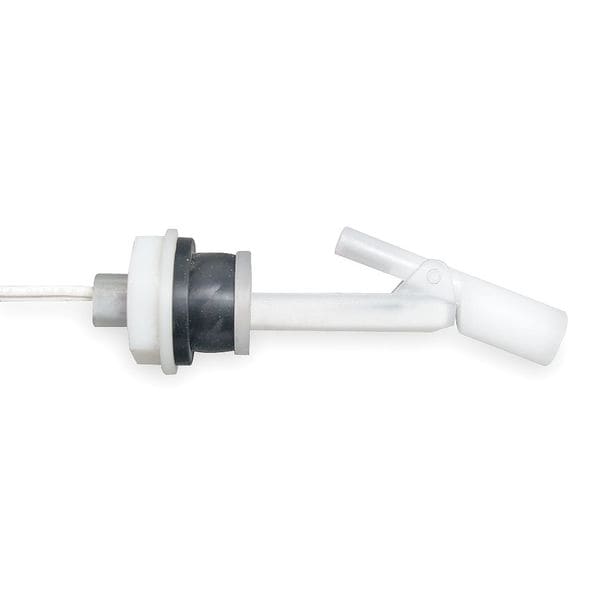

SPST Tank Liquid Level Switch Selectable 240VAC 100 psi

original price: $24.80
31% off
new price: $16.99
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Voltage 240VAC
  • Max. Pressure 100 psi
  • Electrical Connections 22 ga MTW Coated 24 in Leads
  • Max. Voltage 240 V
  • Float Switch Contact Form SPST
See all product information

Product Information

Dimensions

Stem Length 3.31 in
Float Length 1.75 in
Float Dia. 1.0 in
Width 0.6 in
Conduit Size 5/8 in 11
Tank Connection Size 5/8 in - 11 UNC
Overall Length 4.04 in
Overall Width 0.6 in
Stem Thread Size 5/8-11 UNC
Float Diameter 1 in

Details

Voltage 240VAC
Max. Pressure 100 psi
Electrical Connections 22 ga MTW Coated 24 in Leads
Max. Voltage 240 V
Float Switch Contact Form SPST
Float Material Polypropylene
Float Specific Gravity 0.7
Operating Temp. Range 221 Degrees F Max.
Max. Current 0.28 A
Float Switch Float Material Polypropylene
Item Alternator Closed Liquid Level Switch
Mounting Side
Body Material Polypropylene
Contact Form SPST
Standards CE, CSA, UL Listed
Switch Function Selectable
VA Rating 30
Stem Material Polypropylene
Series M8790-14/4184
Product Type Alternator Closed Liquid Level Switch
Electrical Connection Lead Wires
Proof Pressure 100 psi
Voltage Rating - Maximum 120 V DC, 240 V AC
Minimum Media Specific Gravity 0.63
Current Rating - Maximum 0.28 A
Operating Temperature - Maximum 221 Degrees F

Description

Alternator Closed Liquid Level Switch, Switch Function Selectable, Side Mounting, Tank Connection Size 5/8 in - 11 UNC, Max. Pressure 100 psi, VA Rating 30, Operating Temp. Range 221 Degrees F Max., Overall Length 4.04 in, Float Material Polypropylene, Float Length 1.75 in, Float Dia. 1.0 in, Stem Material Polypropylene, Stem Length 3.31 in, Height -, Width 0.6 in, Contact Form SPST, Max. Current 0.28 A, Max. Voltage 240 V, Body Material Polypropylene, Conduit Size 5/8 in 11
