  13. Lifting Magnet, 9-1/4" H, 6-1/2" L
Shop All Below the Hook Lifting Magnets
Mag-Mate

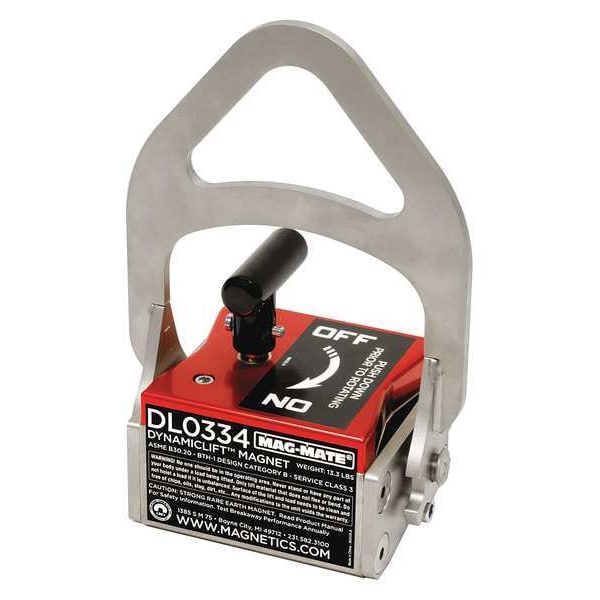

Lifting Magnet, 9-1/4" H, 6-1/2" L

product price: $886.58
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Max. Rated Flat Capacity 334 lb
  • Overall Height 9 3/4 in
  • Magnet Activation Locking On/Off Handle
  • Overall Length 5 3/4 in
  • Magnet Length 4 1/4 in
See all product information

Product Information

Dimensions

Overall Height 9 3/4 in
Overall Length 5 3/4 in
Magnet Length 4 1/4 in
Magnet Width 4 in
Handle Length 2 1/2 in
Bail Opening Height 2 1/4 in
Bail Opening Width 4 in
Overall Width 13 1/4 in
Magnet Height 3 in
Bail Inside Width 4 in
Bail Inside Length 2 1/4 in

Details

Max. Rated Flat Capacity 334 lb
Item Lifting Magnet
Magnet Activation Locking On/Off Handle
Max. Heat Resistant Temp. 180 Degrees F
Standards ASME B30.20 BTH-1
Max. Rated Capacity @ Min. Activation Thickness 275 lb
Required Material Thickness for Max Rated Capacity 3 in
Magnet Material Rare Earth
Min. Material Thickness for Activation 1/4 in
Features Lifts Flat or Round Loads Horizontally and Flat Loads Vertically, Top Rotating and Locking On/Off Handle
Max. Rated Round Capacity 167 lb
Footnotes Lifting Magnets are Stated At 33% of The Maximum Lifting Value, When Lifting Sheets Plates Over (8) Feet Long, Use Two or Magnets On A Spreader Beam to Prevent Sheets From Flexing, Sagging or Peel Off, Thin Material Is Susceptible to Magnetic Bleed Through, Resulting In Two Sheets Being Lifted At Once, Round Item Lifting Values are Based on Ideal Conditions, Length, Wall Thickness, Diameter and Surface Condition Can All Effect The Magnets Performance
Number of Poles 2
Maximum Flat Load Capacity 334 lb
Activation Mechanism On/Off Handle
Minimum Thickness for Activation 1/4 in
Maximum Load Capacity 334 lb
Minimum Operating Temperature -10 Degrees F
Maximum Round Load Capacity 167 lb
Maximum Operating Temperature 180 Degrees F
Bail Thickness 1/4 in
Minimum Thickness for Maximum Load Capacity 3 in

Description

Lifting Magnet, Maximum Flat Load Capacity 334 lb, Maximum Round Load Capacity 167 lb, Minimum Thickness for Activation 1/4 in, Minimum Thickness for Maximum Load Capacity 3 in, Activation Mechanism On/Off Handle, Magnet Length 4 1/4 in, Magnet Width 4 in, Magnet Height 3 in, Overall Length 5 3/4 in, Overall Width 13 1/4 in, Overall Height 9 3/4 in, Bail Inside Width 4 in, Bail Inside Length 2 1/4 in, Handle Length 2 1/2 in, Minimum Operating Temperature -10 Degrees F

Restrictions

  • Hazardous material
