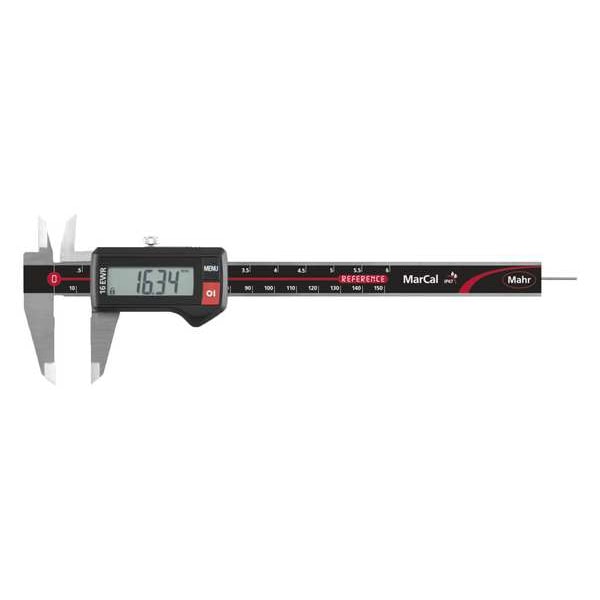

Digital Caliper, 0.0005in.Res, 150mmRange

Mfr # 4103300
Zoro # G2014008

218.99

Free Shipping & Returns

Key Features

Caliper Material

Stainless Steel

Caliper Range

0-6 in /0-150mm

Accuracy

+/- 0.001 in, +/- 0.03 mm

SPC Output

Resolution

0.0005 in/0.01 mm

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 4103300
Zoro #: G2014008
UPC #: 712155481541
Country of Origin: China

Dimensions

Jaw Depth: 1 37/64 in
Depth Rod Shape: Round
Dimension Type: Inch/Metric
Measures Outside Dimension: Yes
Measures Inside Dimension: Yes
Battery Size: CR2032
Measures Depth: Yes
Jaw Depth - Upper Jaw: 5/8 in

Details

Item: 4-Way Digital Caliper
Caliper Material: Stainless Steel
Caliper Range: 0-6 in /0-150mm
Accuracy: +/- 0.001 in, +/- 0.03 mm
SPC Output: No
Resolution: 0.0005 in/0.01 mm
IP Rating: IP67
Absolute Positioning: Yes
Features: Round Depth Rod, On/Off, Zero-Set, Inch/Millimeter Functions, High Contrast Analog Display, Locking Screw Above, Lapped Guide Way, Measuring Blade for Inside Measurements, Raised Guide Ways for The Protection of the Scale
Standards: DIN 862
Long Form Calibration Certificate: No
Caliper Grouping: Digital Caliper
With Locking Nut: Yes
Functions: Auto Power Off, Zero, Preset, Reversal Of Counting Direction, Lock
Includes Battery: Yes
Minimum Measurement - Inch: 0 in
Water Resistant: Yes
Dust Resistant: Yes
Display Type: Analog, 11 mm Digit Height
Jaw Actuation Type: Slide
Included Certification: Certificate of Conformance
Jaw Material: Stainless Steel
Maximum Measurement - Inch: 6 in
Includes Case: Yes
Minimum Measurement - Fractional Inch: 0 in
Left-Handed Operation: No
Maximum Measurement - mm: 150 mm
Measures Step: Yes
Jaw Shape: Standard
Minimum Measurement - mm: 0 mm
Coolant Resistant: Yes
Range: 0 in to 6 in, 0 to 150 mm
Measurements: 4-Way
Data Output Type: Manual
Graduations - Lower Scale: 10 mm
Graduations - Upper Scale: 0.5 in
Inches Measured - Maximum: 6 in
Millimeter Graduations: 10 mm (Lower Scale)
Measurement Type: Depth, Inside, Outside, Step
Millimeters Measured - Maximum: 150 mm
Inches Measured - Minimum: 0 in
Millimeters Measured - Minimum: 0 mm
Inch Graduations: 0.5 in (Upper Scale)
Battery Type: CR2032
Product Type: Digital Caliper

Description

4-Way Digital Caliper, Caliper Range 0-6 in /0-150mm, Resolution 0.0005 in/0.01 mm, IP Rating IP67, SPC Output No, Accuracy +/- 0.001 in, +/- 0.03 mm, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 1 37/64 in, Long Form Calibration Certificate No

Restrictions

Hazardous material
