  13. Digital Caliper, 0.001 in. Res., SS

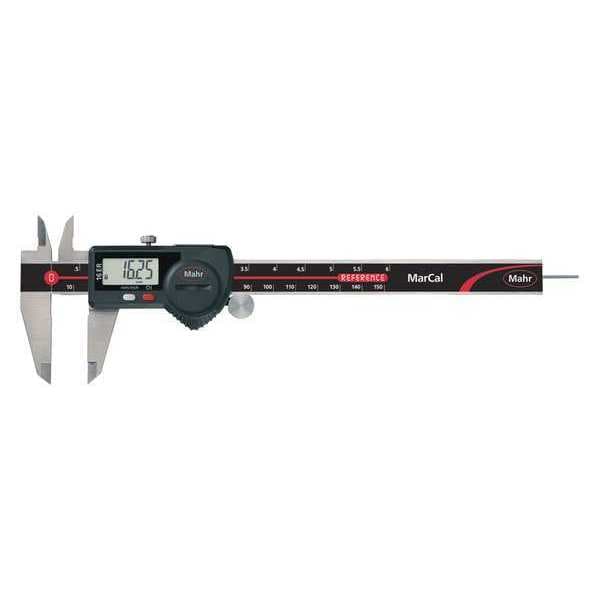

Mahr Digital Caliper, 0.001 in. Res., SS 4103015 - main

Digital Caliper, 0.001 in. Res., SS

  • Mfr # 4103015

  • Zoro # G2014209

product price: $184.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
4103015
Zoro #
G2014209
UPC #
712155480551
Country of Origin
China

Dimensions

Jaw Depth
1 37/64 in
Depth Rod Shape
Round
Measures Outside Dimension
Yes
Measures Inside Dimension
Yes
Jaw Depth - Upper Jaw
5/8 in
Battery Size
CR2032
Measures Depth
Yes
Dimension Type
Inch/Metric

Details

Item
4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
Not Rated
Absolute Positioning
Yes
Features
On/Off, Zero-Set, Inch/Millimeter Functions, Reference System Immediate Measurement, MacConnet Data Output, Dirt Wipers are Integrated In The Slide, High Contrast LCD, 11mm High Digits, Locking Screw
Long Form Calibration Certificate
No
Caliper Grouping
Digital Caliper
Standards
DIN 862
Data Output Connection Type
USB; RS232; Digimatic
Minimum Measurement - Inch
0 in
Coolant Resistant
No
Included Certification
Certificate of Conformance
Water Resistant
No
Includes Battery
Yes
Measures Step
Yes
Compatible SPC Cable
Mfr. No. 4102357 16; Mfr. No. 4102915 16
Maximum Measurement - Inch
6 in
Range
0 in to 6 in, 0 to 150 mm
With Locking Nut
Yes
Jaw Material
Stainless Steel
Jaw Shape
Standard
Left-Handed Operation
No
Measurements
4-Way
Dust Resistant
No
Maximum Measurement - mm
150 mm
Jaw Actuation Type
Thumb Wheel
Functions
Auto Power Off, Zero, Preset, Reversal Of Counting Direction, Lock
Minimum Measurement - Fractional Inch
0 in
Display Type
Analog, 8.5 mm Digit Height
Includes Case
Yes
Minimum Measurement - mm
0 mm
Data Output Type
Cabled
Measurement Type
Depth, Inside, Outside, Step
Product Type
Digital Caliper
Battery Type
CR2032
Millimeters Measured - Minimum
0 mm
Data Output Wired Connection
USB; RS232; Digimatic
Millimeters Measured - Maximum
150 mm
Inches Measured - Minimum
0 in
Inches Measured - Maximum
6 in

Description

4-Way Digital Caliper, Caliper Range 0-6 in /0-150mm, Resolution 0.0005 in/0.01 mm, IP Rating Not Rated, SPC Output Yes, Accuracy +/- 0.001 in, +/- 0.03 mm, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 1 37/64 in, Long Form Calibration Certificate No, Features On/Off, Zero-Set, Inch/Millimeter Functions, Reference System Immediate Measurement, MacConnet Data Output, Dirt Wipers are Integrated In The Slide, High Contrast LCD, 11mm High Digits, Locking Screw
