  13. Digital Caliper, 0.001 in. Res., SS, DIN862

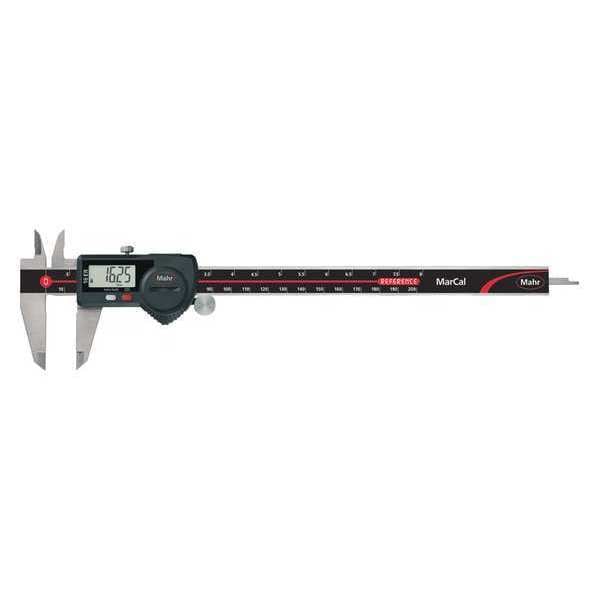

Mahr Digital Caliper, 0.001 in. Res., SS, DIN862 4103019 - main

Digital Caliper, 0.001 in. Res., SS, DIN862

  • Mfr # 4103019

  • Zoro # G2014166

product price: $274.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-8 in /0-200mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4103019
Zoro #
G2014166
UPC #
712155480605
Country of Origin
China

Dimensions

Jaw Depth
1 31/32 in
Jaw Depth - Upper Jaw
3/4 in
Measures Depth
Yes
Dimension Type
Inch/Metric
Battery Size
CR2032
Depth Rod Shape
Rectangular
Measures Inside Dimension
Yes
Measures Outside Dimension
Yes

Details

Item
4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-8 in /0-200mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
Not Rated
Absolute Positioning
Yes
Features
On/Off, Zero-Set, Inch/Millimeter Functions, Reference System Immediate Measurement, MacConnet Data Output, Dirt Wipers are Integrated In The Slide, High Contrast LCD, 11mm High Digits, Locking Screw
Caliper Grouping
Digital Caliper
Standards
DIN 862
Long Form Calibration Certificate
No
Left-Handed Operation
No
With Locking Nut
Yes
Minimum Measurement - Fractional Inch
0 in
Includes Battery
Yes
Maximum Measurement - Inch
8 in
Measurements
4-Way
Maximum Measurement - mm
200 mm
Functions
Auto Power Off, Zero, Preset, Reversal Of Counting Direction, Lock
Display Type
Analog, 8.5 mm Digit Height
Compatible SPC Cable
Mfr. No. 4102357 16; Mfr. No. 4102915 16
Data Output Type
Cabled
Includes Case
Yes
Included Certification
Certificate of Conformance
Data Output Connection Type
USB; RS232; Digimatic
Coolant Resistant
No
Minimum Measurement - mm
0 mm
Jaw Material
Stainless Steel
Range
0 in to 8 in, 0 to 200 mm
Dust Resistant
No
Jaw Actuation Type
Thumb Wheel
Water Resistant
No
Measures Step
Yes
Jaw Shape
Standard
Minimum Measurement - Inch
0 in
Measurement Type
Depth, Inside, Outside, Step
Inches Measured - Maximum
8 in
Millimeters Measured - Maximum
200 mm
Millimeters Measured - Minimum
0 mm
Inches Measured - Minimum
0 in
Data Output Wired Connection
USB; RS232; Digimatic
Product Type
Digital Caliper
Battery Type
CR2032

Description

This Mahr 4103019 Digital Caliper is a versatile instrument for use in a variety of applications. With an LCD display and 11mm high digits, it offers clear measurements that are easy to read. The caliper has an inch/millimeter functions with on/off, zero-set, reference system immediate measurement functions. It has a high contrast LCD with dirt wipers integrated into the slide. It also features MacConnet data output and locks for safety purposes. Stainless steel construction makes this digital caliper strong and durable. The Mahr 4103019 Digital Caliper is perfect for both work or home projects.
