  13. Digital Caliper, 0.001 in. Res., SS, IP67

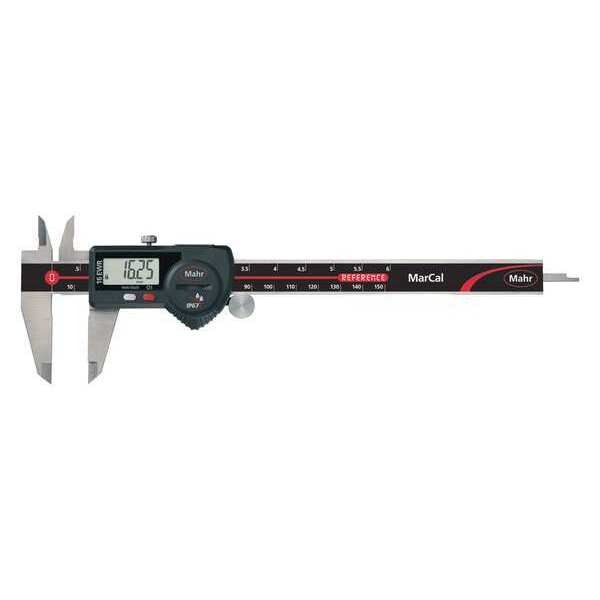

Mahr Digital Caliper, 0.001 in. Res., SS, IP67 4103067 - main

Digital Caliper, 0.001 in. Res., SS, IP67

  • Mfr # 4103067

  • Zoro # G2014236

product price: $341.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4103067
Zoro #
G2014236
UPC #
712155480452
Country of Origin
China

Dimensions

Jaw Depth
1 37/64 in
Measures Inside Dimension
Yes
Measures Outside Dimension
Yes
Jaw Depth - Upper Jaw
5/8 in
Depth Rod Shape
Rectangular
Battery Size
CR2032
Measures Depth
Yes
Dimension Type
Inch/Metric

Details

Item
4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
IP67
Absolute Positioning
Yes
Features
On/Off, Zero-Set, Inch/Millimeter Functions, High Contrast LCD, 8.5mm High Digits, Resistance Against Dust, Coolants and Lubricants, Dirt Wipers are Integrated In The Slide, Lapped Guide Way, Locking Screw, Step Measuring Function, Measuring Blades for Inside Measurement
Long Form Calibration Certificate
No
Caliper Grouping
Digital Caliper
Standards
DIN 862
Measures Step
Yes
Includes Case
Yes
Left-Handed Operation
No
Maximum Measurement - Inch
6 in
Data Output Type
Cabled
Display Type
Analog, 8.5 mm Digit Height
Measurements
4-Way
Minimum Measurement - Fractional Inch
0 in
With Locking Nut
Yes
Jaw Actuation Type
Thumb Wheel
Coolant Resistant
Yes
Compatible SPC Cable
Mfr. No. 4102357 16; Mfr. No. 4102915 16
Minimum Measurement - mm
0 mm
Includes Battery
Yes
Minimum Measurement - Inch
0 in
Dust Resistant
Yes
Range
0 in to 6 in, 0 to 150 mm
Jaw Shape
Standard
Maximum Measurement - mm
150 mm
Functions
Auto Power Off, Zero, Preset, Reversal Of Counting Direction, Lock
Water Resistant
Yes
Included Certification
Certificate of Conformance
Jaw Material
Stainless Steel
Data Output Connection Type
USB; RS232; Digimatic
Battery Type
CR2032
Inches Measured - Maximum
6 in
Data Output Wired Connection
USB; RS232; Digimatic
Product Type
Digital Caliper
Inches Measured - Minimum
0 in
Millimeters Measured - Maximum
150 mm
Millimeters Measured - Minimum
0 mm
Measurement Type
Depth, Inside, Outside, Step

Description

4-Way Digital Caliper, Caliper Range 0-6 in /0-150mm, Resolution 0.0005 in/0.01 mm, IP Rating IP67, SPC Output Yes, Accuracy +/- 0.001 in, +/- 0.03 mm, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 1 37/64 in, Long Form Calibration Certificate No
