  13. Digital Caliper, 0.001 in.Res, 150mm Range

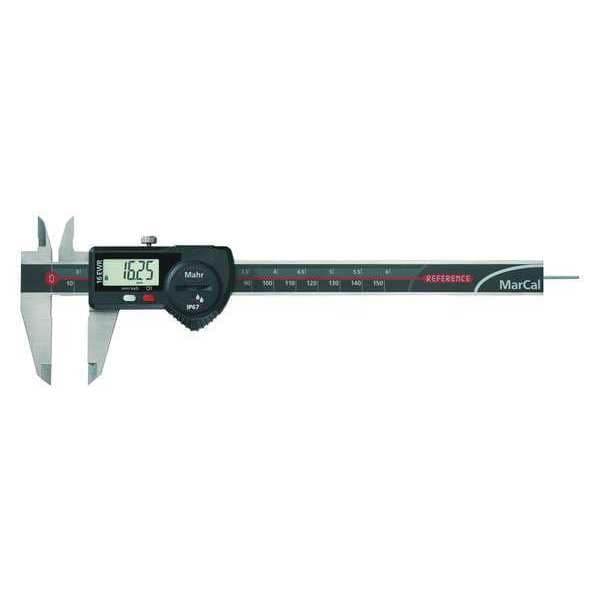

Mahr Digital Caliper, 0.001 in.Res, 150mm Range 4103064 - main

Digital Caliper, 0.001 in.Res, 150mm Range

  • Mfr # 4103064

  • Zoro # G2014251

product price: $282.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4103064
Zoro #
G2014251
UPC #
712155480421
Country of Origin
China

Dimensions

Jaw Depth
1 37/64 in
Depth Rod Shape
Round
Measures Depth
Yes
Measures Outside Dimension
Yes
Dimension Type
Inch/Metric
Jaw Depth - Upper Jaw
5/8 in
Measures Inside Dimension
Yes
Battery Size
CR2032

Details

Item
4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
IP67
Absolute Positioning
Yes
Features
On/Off, Zero-Set, Inch/Millimeter Functions, High Contrast LCD, 8.5mm High Digits, Resistance Against Dust, Coolants and Lubricants, Dirt Wipers are Integrated In The Slide, Lapped Guide Way, Locking Screw, Step Measuring Function, Measuring Blades for Inside Measurement
Caliper Grouping
Digital Caliper
Standards
DIN 862
Long Form Calibration Certificate
No
Functions
Auto Power Off, Zero, Preset, Reversal Of Counting Direction, Lock
Range
0 in to 6 in, 0 to 150 mm
Dust Resistant
Yes
Water Resistant
Yes
Maximum Measurement - Inch
6 in
Minimum Measurement - Fractional Inch
0 in
Measures Step
Yes
Includes Battery
Yes
Jaw Actuation Type
Slide
Included Certification
Certificate of Conformance
Display Type
Analog, 8.5 mm Digit Height
Left-Handed Operation
No
Data Output Type
Cabled
Jaw Shape
Standard
Data Output Connection Type
USB; RS232; Digimatic
Minimum Measurement - Inch
0 in
Maximum Measurement - mm
150 mm
Minimum Measurement - mm
0 mm
Jaw Material
Stainless Steel
Includes Case
Yes
Compatible SPC Cable
Mfr. No. 4102357 16; Mfr. No. 4102915 16
With Locking Nut
Yes
Coolant Resistant
Yes
Measurements
4-Way
Data Output Wired Connection
USB; RS232; Digimatic
Inches Measured - Maximum
6 in
Millimeters Measured - Minimum
0 mm
Millimeters Measured - Maximum
150 mm
Measurement Type
Depth, Inside, Outside, Step
Inches Measured - Minimum
0 in
Battery Type
CR2032
Product Type
Digital Caliper

Description

4-Way Digital Caliper, Caliper Range 0-6 in /0-150mm, Resolution 0.0005 in/0.01 mm, IP Rating IP67, SPC Output Yes, Accuracy +/- 0.001 in, +/- 0.03 mm, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 1 37/64 in, Long Form Calibration Certificate No

Restrictions

Hazardous material
