  13. Digital Caliper, 0.001"/0.03mm Accuracy

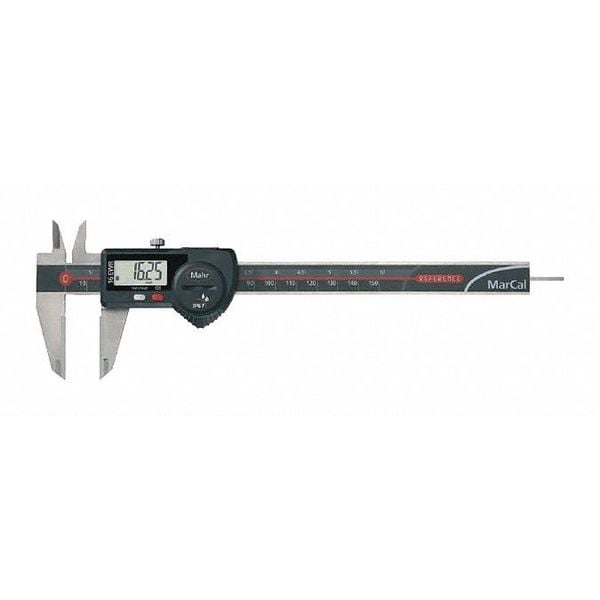

Mahr Digital Caliper, 0.001"/0.03mm Accuracy 4103073 - main

Digital Caliper, 0.001"/0.03mm Accuracy

  • Mfr # 4103073

  • Zoro # G5511541

product price: $579.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4103073
Zoro #
G5511541
UPC #
-
Country of Origin
China

Dimensions

Jaw Depth
1 37/64 in
Dimension Type
Inch/Metric
Measures Inside Dimension
Yes
Jaw Depth - Upper Jaw
5/8 in
Battery Size
CR2032
Measures Depth
Yes
Measures Outside Dimension
Yes
Depth Rod Shape
Round

Details

Item
Carbide Jaw 4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
IP67
Absolute Positioning
Yes
Features
On/Off, Zero-Set, Inch/Millimeter Functions, Immediate Measurement Due to The Reference System, Locking Screw, Lapped Guide Way
Includes
Carbide Jaw Option, Round Depth Rod
Long Form Calibration Certificate
No
Standards
DIN 862
Measurements
4-Way
Minimum Measurement - mm
0 mm
Included Certification
Certificate of Conformance
Measures Step
Yes
Range
0 in to 6 in, 0 to 150 mm
Minimum Measurement - Inch
0 in
Compatible SPC Cable
Mfr. No. 4102357 16; Mfr. No. 4102915 16
Maximum Measurement - Inch
6 in
With Locking Nut
Yes
Functions
Auto Power Off, Zero, Preset, Reversal Of Counting Direction, Lock
Jaw Material
Carbide-Tipped
Minimum Measurement - Fractional Inch
0 in
Coolant Resistant
Yes
Maximum Measurement - mm
150 mm
Includes Battery
Yes
Left-Handed Operation
No
Data Output Connection Type
USB; RS232; Digimatic
Jaw Actuation Type
Slide
Display Type
Analog, 8.5 mm Digit Height
Water Resistant
Yes
Jaw Shape
Standard
Dust Resistant
Yes
Data Output Type
Cabled
Inches Measured - Minimum
0 in
Millimeters Measured - Minimum
0 mm
Battery Type
CR2032
Data Output Wired Connection
USB; RS232; Digimatic
Millimeters Measured - Maximum
150 mm
Product Type
Digital Caliper
Measurement Type
Depth, Inside, Outside, Step
Inches Measured - Maximum
6 in

Description

Carbide Jaw 4-Way Digital Caliper, Caliper Range 0-6 in /0-150mm, Resolution 0.0005 in/0.01 mm, IP Rating IP67, SPC Output Yes, Accuracy +/- 0.001 in, +/- 0.03 mm, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 1 37/64 in, Long Form Calibration Certificate No, Features On/Off, Zero-Set, Inch/Millimeter Functions, Immediate Measurement Due to The Reference System, Locking Screw, Lapped Guide Way, Standards DIN 862
