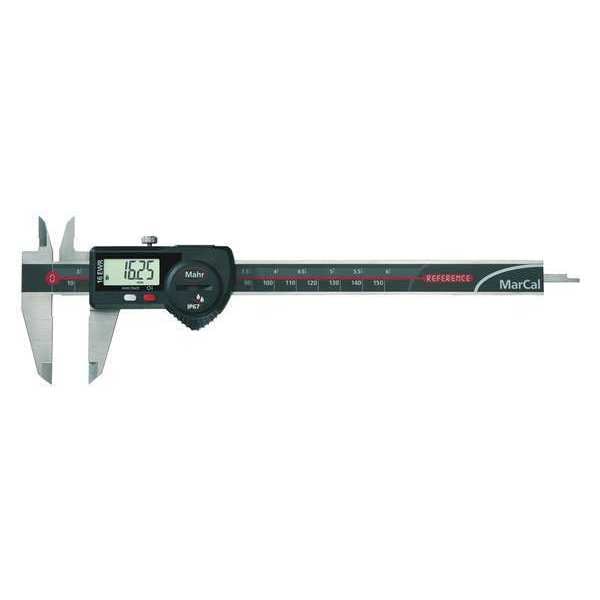

Mahr Digital Caliper, 40mm Jaw D, 150mm Range 4103066 - main

Digital Caliper, 40mm Jaw D, 150mm Range

  • Mfr # 4103066

  • Zoro # G2014245

product price: $339.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4103066
Zoro #
G2014245
UPC #
712155480438
Country of Origin
China

Dimensions

Jaw Depth
1 37/64 in
Dimension Type
Inch/Metric
Measures Inside Dimension
Yes
Battery Size
CR2032
Jaw Depth - Upper Jaw
5/8 in
Measures Outside Dimension
Yes
Measures Depth
Yes
Depth Rod Shape
Rectangular

Details

Item
4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
IP67
Absolute Positioning
Yes
Features
On/Off, Zero-Set, Inch/Millimeter Functions, High Contrast LCD, 8.5mm High Digits, Resistance Against Dust, Coolants and Lubricants, Dirt Wipers are Integrated In The Slide, Lapped Guide Way, Locking Screw, Step Measuring Function, Measuring Blades for Inside Measurement
Standards
DIN 862
Caliper Grouping
Digital Caliper
Long Form Calibration Certificate
No
Includes Case
Yes
Minimum Measurement - Inch
0 in
Measures Step
Yes
Coolant Resistant
Yes
Compatible SPC Cable
Mfr. No. 4102357 16; Mfr. No. 4102915 16
Data Output Type
Cabled
Included Certification
Certificate of Conformance
Jaw Material
Stainless Steel
Water Resistant
Yes
Minimum Measurement - mm
0 mm
Data Output Connection Type
USB; RS232; Digimatic
With Locking Nut
Yes
Includes Battery
Yes
Measurements
4-Way
Maximum Measurement - Inch
6 in
Range
0 in to 6 in, 0 to 150 mm
Minimum Measurement - Fractional Inch
0 in
Functions
Auto Power Off, Zero, Preset, Reversal Of Counting Direction, Lock
Jaw Actuation Type
Slide
Display Type
Analog, 8.5 mm Digit Height
Left-Handed Operation
No
Maximum Measurement - mm
150 mm
Dust Resistant
Yes
Jaw Shape
Standard
Product Type
Digital Caliper
Measurement Type
Depth, Inside, Outside, Step
Inches Measured - Maximum
6 in
Battery Type
CR2032
Millimeters Measured - Minimum
0 mm
Millimeters Measured - Maximum
150 mm
Inches Measured - Minimum
0 in
Data Output Wired Connection
USB; RS232; Digimatic

Description

4-Way Digital Caliper, Caliper Range 0-6 in /0-150mm, Resolution 0.0005 in/0.01 mm, IP Rating IP67, SPC Output Yes, Accuracy +/- 0.001 in, +/- 0.03 mm, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 1 37/64 in, Long Form Calibration Certificate No
