  13. Digital Caliper, 40mm Jaw D, SS

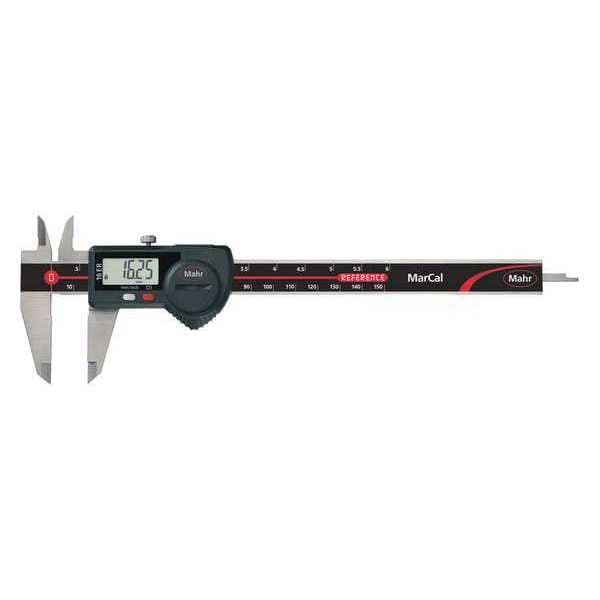

Mahr Digital Caliper, 40mm Jaw D, SS 4103016 - main

Digital Caliper, 40mm Jaw D, SS

  • Mfr # 4103016

  • Zoro # G2014190

product price: $192.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4103016
Zoro #
G2014190
UPC #
712155480582
Country of Origin
China

Dimensions

Jaw Depth
1 37/64 in
Measures Depth
Yes
Battery Size
CR2032
Depth Rod Shape
Rectangular
Measures Inside Dimension
Yes
Dimension Type
Inch/Metric
Measures Outside Dimension
Yes
Jaw Depth - Upper Jaw
5/8 in

Details

Item
4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
Not Rated
Absolute Positioning
Yes
Features
On/Off, Zero-Set, Inch/Millimeter Functions, Reference System Immediate Measurement, MacConnet Data Output, Dirt Wipers are Integrated In The Slide, High Contrast LCD, 11mm High Digits, Locking Screw
Long Form Calibration Certificate
No
Caliper Grouping
Digital Caliper
Standards
DIN 862
Jaw Actuation Type
Slide
Maximum Measurement - Inch
6 in
Jaw Shape
Standard
Left-Handed Operation
No
Minimum Measurement - mm
0 mm
Jaw Material
Stainless Steel
Compatible SPC Cable
Mfr. No. 4102357 16; Mfr. No. 4102915 16
Dust Resistant
No
Data Output Connection Type
USB; RS232; Digimatic
Measurements
4-Way
Minimum Measurement - Fractional Inch
0 in
Range
0 in to 6 in, 0 to 150 mm
Coolant Resistant
No
Includes Battery
Yes
Measures Step
Yes
Water Resistant
No
Maximum Measurement - mm
150 mm
Included Certification
Certificate of Conformance
Display Type
Analog, 8.5 mm Digit Height
Functions
Auto Power Off, Zero, Preset, Reversal Of Counting Direction, Lock
Minimum Measurement - Inch
0 in
With Locking Nut
Yes
Includes Case
Yes
Data Output Type
Cabled
Measurement Type
Depth, Inside, Outside, Step
Inches Measured - Minimum
0 in
Millimeters Measured - Minimum
0 mm
Data Output Wired Connection
USB; RS232; Digimatic
Millimeters Measured - Maximum
150 mm
Inches Measured - Maximum
6 in
Product Type
Digital Caliper
Battery Type
CR2032

Description

4-Way Digital Caliper, Caliper Range 0-6 in /0-150mm, Resolution 0.0005 in/0.01 mm, IP Rating Not Rated, SPC Output Yes, Accuracy +/- 0.001 in, +/- 0.03 mm, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 1 37/64 in, Long Form Calibration Certificate No, Features On/Off, Zero-Set, Inch/Millimeter Functions, Reference System Immediate Measurement, MacConnet Data Output, Dirt Wipers are Integrated In The Slide, High Contrast LCD, 11mm High Digits, Locking Screw
