  13. Digital Caliper, 64mm Jaw D, IP67

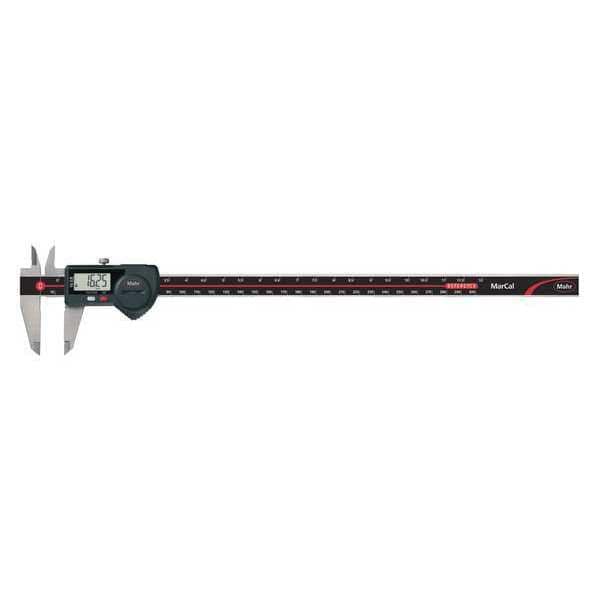

Mahr Digital Caliper, 64mm Jaw D, IP67 4103020 - main

Digital Caliper, 64mm Jaw D, IP67

  • Mfr # 4103020

  • Zoro # G2014157

product price: $379.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-12 in /0-300mm
Accuracy
+/- 0.0015 in, +/- 0.04 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4103020
Zoro #
G2014157
UPC #
712155480575
Country of Origin
China

Dimensions

Jaw Depth
2 1/2 in
Jaw Depth - Upper Jaw
3/4 in
Battery Size
CR2032
Measures Inside Dimension
Yes
Dimension Type
Inch/Metric
Measures Depth
No
Measures Outside Dimension
Yes

Details

Item
4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-12 in /0-300mm
Accuracy
+/- 0.0015 in, +/- 0.04 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
Not Rated
Absolute Positioning
Yes
Features
On/Off, Zero-Set, Inch/Millimeter Functions, Reference System Immediate Measurement, MacConnet Data Output, Dirt Wipers are Integrated In The Slide, High Contrast LCD, 11mm High Digits, Locking Screw
Long Form Calibration Certificate
No
Caliper Grouping
Digital Caliper
Maximum Measurement - Inch
12 in
Minimum Measurement - Inch
0 in
Data Output Type
Cabled
Water Resistant
No
Dust Resistant
No
Minimum Measurement - mm
0 mm
Compatible SPC Cable
Mfr. No. 4102357 16; Mfr. No. 4102915 16
Jaw Material
Stainless Steel
Maximum Measurement - mm
300 mm
Display Type
Analog, 8.5 mm Digit Height
Coolant Resistant
No
Functions
Auto Power Off, Zero, Preset, Reversal Of Counting Direction, Lock
Measurements
Outside, Inside, Step
Jaw Shape
Standard
Jaw Actuation Type
Slide
With Locking Nut
Yes
Minimum Measurement - Fractional Inch
0 in
Includes Battery
Yes
Includes Case
Yes
Left-Handed Operation
No
Data Output Connection Type
USB; RS232; Digimatic
Included Certification
Certificate of Conformance
Measures Step
Yes
Range
0 in to 12 in, 0 to 300 mm
Millimeters Measured - Minimum
0 mm
Inches Measured - Minimum
0 in
Measurement Type
Inside, Outside, Step
Millimeters Measured - Maximum
300 mm
Battery Type
CR2032
Product Type
Digital Caliper
Data Output Wired Connection
USB; RS232; Digimatic
Inches Measured - Maximum
12 in

Description

4-Way Digital Caliper, Caliper Range 0-12 in /0-300mm, Resolution 0.0005 in/0.01 mm, IP Rating Not Rated, SPC Output Yes, Accuracy +/- 0.0015 in, +/- 0.04 mm, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 2 1/2 in, Long Form Calibration Certificate No, Features On/Off, Zero-Set, Inch/Millimeter Functions, Reference System Immediate Measurement, MacConnet Data Output, Dirt Wipers are Integrated In The Slide, High Contrast LCD, 11mm High Digits, Locking Screw

Restrictions

Hazardous material
