  13. Digital Caliper, IP67 Res., 40mm Jaw D, SS

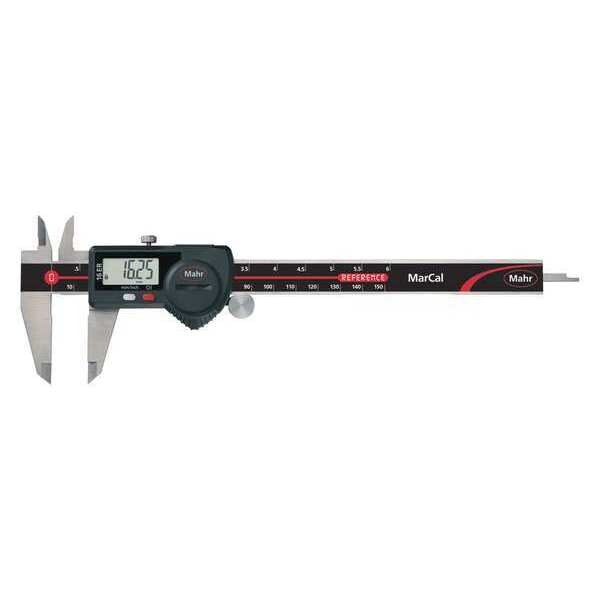

Mahr Digital Caliper, IP67 Res., 40mm Jaw D, SS 4103017 - main

Digital Caliper, IP67 Res., 40mm Jaw D, SS

  • Mfr # 4103017

  • Zoro # G2014181

product price: $205.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4103017
Zoro #
G2014181
UPC #
712155480599
Country of Origin
China

Dimensions

Jaw Depth
1 37/64 in
Jaw Depth - Upper Jaw
5/8 in
Measures Outside Dimension
Yes
Dimension Type
Inch/Metric
Measures Inside Dimension
Yes
Measures Depth
Yes
Depth Rod Shape
Rectangular
Battery Size
CR2032

Details

Item
4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
Yes
Resolution
0.0005 in/0.01 mm
IP Rating
Not Rated
Absolute Positioning
Yes
Features
Rectangular Depth Rod, Friction Wheel
Standards
DIN 862
Caliper Grouping
Digital Caliper
Long Form Calibration Certificate
No
Data Output Connection Type
USB; RS232; Digimatic
Compatible SPC Cable
Mfr. No. 4102357 16; Mfr. No. 4102915 16
With Locking Nut
Yes
Water Resistant
No
Minimum Measurement - Fractional Inch
0 in
Minimum Measurement - Inch
0 in
Data Output Type
Cabled
Measurements
4-Way
Includes Case
Yes
Includes Battery
Yes
Left-Handed Operation
No
Included Certification
Certificate of Conformance
Maximum Measurement - Inch
6 in
Display Type
Analog, 8.5 mm Digit Height
Dust Resistant
No
Measures Step
Yes
Jaw Shape
Standard
Jaw Actuation Type
Thumb Wheel
Range
0 in to 6 in, 0 to 150 mm
Coolant Resistant
No
Jaw Material
Stainless Steel
Maximum Measurement - mm
150 mm
Functions
Auto Power Off, Zero, Preset, Reversal Of Counting Direction, Lock
Minimum Measurement - mm
0 mm
Battery Type
CR2032
Millimeters Measured - Minimum
0 mm
Inches Measured - Minimum
0 in
Millimeters Measured - Maximum
150 mm
Measurement Type
Depth, Inside, Outside, Step
Product Type
Digital Caliper
Inches Measured - Maximum
6 in
Data Output Wired Connection
USB; RS232; Digimatic

Description

4-Way Digital Caliper, Caliper Range 0-6 in /0-150mm, Resolution 0.0005 in/0.01 mm, IP Rating Not Rated, SPC Output Yes, Accuracy +/- 0.001 in, +/- 0.03 mm, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 1 37/64 in, Long Form Calibration Certificate No, Features On/Off, Zero-Set, Inch/Millimeter Functions, Reference System Immediate Measurement, MacConnet Data Output, Dirt Wipers are Integrated In The Slide, High Contrast LCD, 11mm High Digits, Locking Screw
