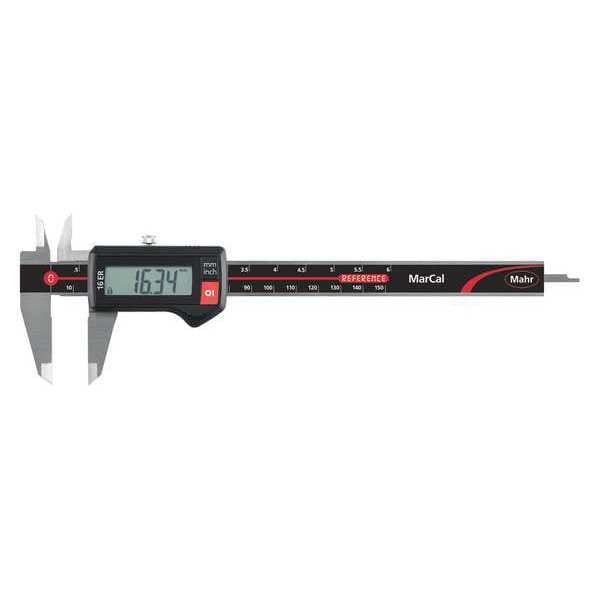

Mahr Digital Caliper, Up to 6in.Range, w/Output 4103012 - main

Digital Caliper, Up to 6in.Range, w/Output

  • Mfr # 4103012

  • Zoro # G2014437

product price: $169.99
/ea
Free Shipping & Returns

Key Features

Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
No
Resolution
0.0005 in/0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4103012
Zoro #
G2014437
UPC #
712155480513
Country of Origin
China

Dimensions

Jaw Depth
1 37/64 in
Measures Depth
Yes
Depth Rod Shape
Rectangular
Measures Inside Dimension
Yes
Measures Outside Dimension
Yes
Dimension Type
Inch/Metric
Battery Size
CR2032
Jaw Depth - Upper Jaw
5/8 in

Details

Item
4-Way Digital Caliper
Caliper Material
Stainless Steel
Caliper Range
0-6 in /0-150mm
Accuracy
+/- 0.001 in, +/- 0.03 mm
SPC Output
No
Resolution
0.0005 in/0.01 mm
IP Rating
Not Rated
Absolute Positioning
Yes
Features
On/Off and Inch/mm, Immediate Measurement Due to The Reference System, Locking Screw, Dirt Wipers Are integrated In The Side, High Contrast Liquid Crystal Display with 11mm High Digits, Lapped Guide Way, Square Depth Rod
Caliper Grouping
Digital Caliper
Long Form Calibration Certificate
No
Standards
DIN 862
Jaw Material
Stainless Steel
Includes Battery
Yes
Display Type
Analog, 11 mm Digit Height
Jaw Actuation Type
Slide
Jaw Shape
Standard
Measures Step
Yes
Measurements
4-Way
Included Certification
Certificate of Conformance
Maximum Measurement - mm
150 mm
Functions
Auto Power Off, Zero, Preset, Reversal Of Counting Direction, Lock
Minimum Measurement - mm
0 mm
Water Resistant
No
Left-Handed Operation
No
Minimum Measurement - Inch
0 in
Range
0 in to 6 in, 0 to 150 mm
Minimum Measurement - Fractional Inch
0 in
Maximum Measurement - Inch
6 in
Coolant Resistant
No
With Locking Nut
Yes
Dust Resistant
No
Includes Case
Yes
Graduations - Lower Scale
10 mm
Graduations - Upper Scale
0.5 in
Data Output Type
Manual
Inches Measured - Maximum
6 in
Millimeters Measured - Minimum
0 mm
Millimeter Graduations
10 mm (Lower Scale)
Inches Measured - Minimum
0 in
Battery Type
CR2032
Product Type
Digital Caliper
Inch Graduations
0.5 in (Upper Scale)
Millimeters Measured - Maximum
150 mm
Measurement Type
Depth, Inside, Outside, Step

Description

4-Way Digital Caliper, Caliper Range 0-6 in /0-150mm, Resolution 0.0005 in/0.01 mm, IP Rating Not Rated, SPC Output No, Accuracy +/- 0.001 in, +/- 0.03 mm, Caliper Material Stainless Steel, Absolute Positioning Yes, Jaw Depth 1 37/64 in, Long Form Calibration Certificate No
