  6. Cordless Miter Saw, 7 1/2 in Blade Dia., Max Blade Speed: 5,700 RPM 5/8 in Arbor Size

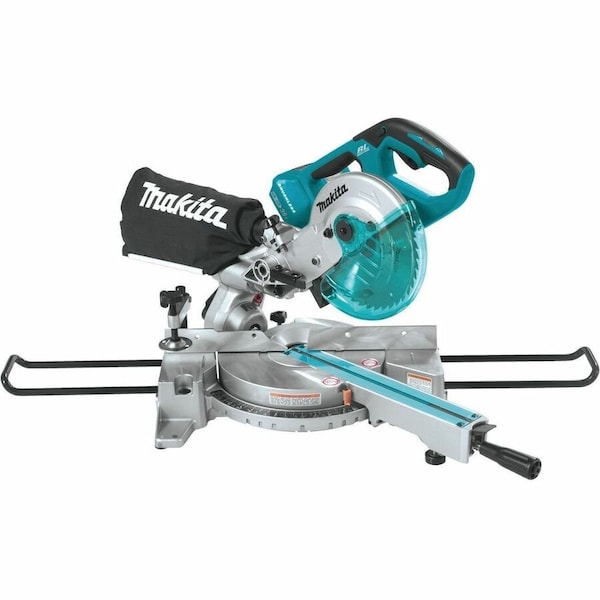

Makita Cordless Miter Saw, 7 1/2 in Blade Dia., Max Blade Speed: 5,700 RPM 5/8 in Arbor Size XSL02Z - main

Cordless Miter Saw, 7 1/2 in Blade Dia., Max Blade Speed: 5,700 RPM 5/8 in Arbor Size

  • Mfr # XSL02Z

  • Zoro # G3308280

product price:  $819.00
/ea
Free Shipping & Returns

Key Features

Power Source
Cordless
Blade Dia.
7 1/2 in
Max. Blade Speed
5,700 RPM
Arbor Size
5/8 in
Voltage
36 V DC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XSL02Z
Zoro #
G3308280
UPC #
088381699648
Country of Origin
China

Dimensions

Blade Dia.
7 1/2 in
Arbor Size
5/8 in
Width
20 1/2 in
Height
14 in
Length
26 1/2 in
Max. Cut Depth @ 45 Deg. Bevel
1 in
Max. Cut Width @ 0 Deg. Miter
11 3/4 in
Max. Cut Width @ 45 Deg. Miter
8 3/8 in
Max. Cut Depth @ 0 Deg. Bevel
2 1/16 in
Cutting Width at 45 Degrees - Miter - Maximum
8 3/8 in
Cutting Depth at 0 Degrees - Maximum
2 1/16 in
Overall Width
20 1/2 in
Overall Length
26 1/2 in
Overall Height
14 in
Cutting Depth at 45 Degrees - Maximum
1 in
Cutting Width at 0 Degrees - Miter - Maximum
11 3/4 in
Blade Diameter
7 1/2 in

Details

Item
Miter Saw
Power Source
Cordless
Max. Blade Speed
5,700 RPM
Voltage
36 V DC
Miter Angle Range
47 Degrees Left to 57 Degrees Right
Bevel Angle Range
45 Degrees Left to 45 Degrees Right
Sliding
Sliding
Cordless Tool Kit Contents
(1) Bare Tool
Includes
Carbide Blade
Item - Cordless Miter Saws
Cordless Miter Saw
Cordless Tool Battery Type
Li-Ion
Tool Weight
28.9 lb
No Load RPM
5700
Blade Type
Carbide
Bevel
Yes
Brushless Motor
Yes
Crosscut @ 45 Deg. H
2-1/16"
Crosscut @ 45 Deg. W
8-3/8"
Corded/Banded
Cordless
Battery Included
No
Battery Included / Bare Tool
Bare Tool
Corded/Cordless
Cordless
Crosscut @ 90 Deg. W
11-3/4"
Crosscut @ 90 Deg. H
2-1/16"
Included Charger
No
Bevel Capacity
0 Degrees to 48 Degrees Left and Right
Features
Automatic Speed Change Adjusts Cutting Speed and Torque During Cut for Optimum Performance
Miter Capacity
0 Degrees to 60 Degrees
Slide
Yes
Bevel Stops
0 Degrees , 15 Degrees , 22.5 Degrees , 30 Degrees , 45 Degrees
Series
LXT
Variable Speed
No
Number of Batteries Included
0
Arbor Shape
Round
Wireless Tool Tracking
No
Charger Included
No
Miter Angle - Right
57 Degrees
Bevel Tilt Direction
Left, Right
Bevel Angle - Left
45 Degrees
Battery Series
LXT(R)
Number of Chargers Included
0
Battery Type
Pouch
Motor Type
Brushless
Miter Angle - Left
47 Degrees
Battery Platform
LXT(R)
Miter Tilt Direction
Left, Right
Includes Battery
Tool Only
Safety Features
Dust Collection/Vacuum System, Electric Brake, Soft Start
Tool Series
LXT(R)
Battery Chemistry
Li-Ion
Bevel Angle - Right
5 Degrees
Blade Speed - Maximum
5,700 RPM
Speed Control
Single

Description

Miter Saw, Cordless, Series LXT, Blade Dia. 7 1/2 in, Max. Blade Speed 5,700 RPM, Arbor Size 5/8 in, Arbor Shape Round, Bevel Angle Range 45 Degrees Left to 45 Degrees Right, Bevel Stops 0 Degrees , 15 Degrees , 22.5 Degrees , 30 Degrees , 45 Degrees , Max. Cut Depth @ 0 Deg. Bevel 2 1/16 in, Max. Cut Depth @ 45 Deg. Bevel 1 in, Miter Angle Range 47 Degrees Left to 57 Degrees Right, Max. Cut Width @ 0 Deg. Miter 11 3/4 in, Max. Cut Width @ 45 Deg. Miter 8 3/8 in, Sliding Sliding
