Mapp Caster

4"X2" Thermoplastic Rubber (TPR) Wheel Swivel Caster - 400 Lbs Cap

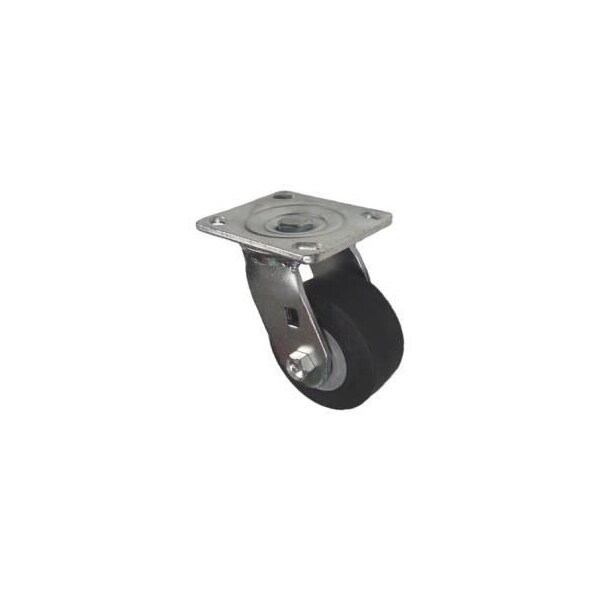

Mapp Caster 4"X2" Thermoplastic Rubber (TPR) Wheel Swivel Caster - 400 Lbs Cap 146PERB420S
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$41.02
  • Caster Sub-Type: Swivel
  • Overall Height: 5-5/8 in
  • Swivel Construction: Double Ball Raceway - 5/8 in Kingpin
See full product details
Orders over $75 ship free.
Total: $41.02

Mapp Caster #146PERB420S Specifications

  • Caster Sub-Type: Swivel
  • Overall Height: 5-5/8 in
  • Swivel Construction: Double Ball Raceway - 5/8 in Kingpin
  • Frame Finish: Bright Zinc Plated
  • Caster Frame Material: Cold Rolled Steel
  • Wheel Color: Black
  • Wheel Type: Thermoplastic Rubber
  • Mounting Bolt Dia.: 3/8 in or Smaller
  • Swivel Radius: 3-1/4 in
  • Weight: 5.5 lb
  • Wheel/Tread Hardness: Shore A 65(+/-5)
  • Temperature Range: -20°F to 180°F
  • Mounting Plate: 4 in X 4-1/2 in
  • Load Capacity: 400 lb
  • Tread Width: 2 in
  • Mounting Plate Bolt Hole Pattern: 2-5/8 in X 3-5/8 in slotted to 3 in X 3 in
  • Wheel Diameter: 4 in
  • Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

Thermoplastic Rubber Wheels combine the advantages of both a hard & soft tread material in a single wheel, making it one of our favorite caster wheels. Like a hard tread wheel, thermoplastic rubber rolls easily and is very durable. Like a soft tread wheel, it is quiet, protects floors, and has a cushioned ride. These caster wheels also hold up well when exposed to weather, are resistant to chemicals, water, & steam, and reject floor debris. We highly recommend these caster for applications requiring non-marking, floor protective, quiet, and smooth rolling wheels. We would not recommend these wheels for applications that require sitting in one spot for long periods of time under heavy loads.

Restrictions and Compliance

  • This item has been restricted from sale in the following states: No

Reviews of Mapp Caster #146PERB420S
