Mapp Caster

6"X2" Poly. on Polyolefin Core Wheel Swvl Caster, 1,000 Lbs Cap

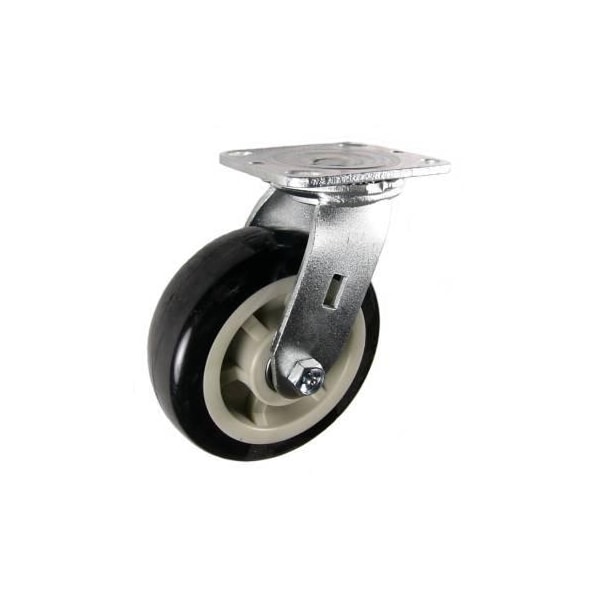

Mapp Caster 6"X2" Poly. on Polyolefin Core Wheel Swvl Caster,  1,000 Lbs Cap 146PRX620S
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$36.35
  • Caster Sub-Type: Swivel
  • Overall Height: 7-1/2 in
  • Swivel Construction: Double Ball Raceway - 5/8 in Kingpin
See full product details
Orders over $75 ship free.
Total: $36.35

Mapp Caster #146PRX620S Specifications

  • Caster Sub-Type: Swivel
  • Overall Height: 7-1/2 in
  • Swivel Construction: Double Ball Raceway - 5/8 in Kingpin
  • Frame Finish: Bright Zinc Plated
  • Swivel Radius: 4-9/16 in
  • Caster Frame Material: Cold Rolled Steel
  • Mounting Bolt Dia.: 3/8 in or Smaller
  • Wheel Color: Black
  • Wheel Type: Polyurethane on Polyolefin
  • Weight: 4.8 lb
  • Tread Width: 2 in
  • Temperature Range: -20°F to 180°F
  • Mounting Plate Bolt Hole Pattern: 2-5/8 in X 3-5/8 in slotted to 3 in X 3 in
  • Load Capacity: 1,000 lb
  • Wheel Bearing Type: Precision Ball
  • Wheel Diameter: 6 in
  • Wheel/Tread Hardness: Shore D 60 (+/-5)
  • Mounting Plate: 4 in X 4-1/2 in
  • Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

Polyurethane on polyolefin wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. These polyurethane on polyolefin wheels are going to be the most economically priced of the polyurethane wheels and great for general industrial applications.These wheels can be used in most applications, but are not recommended for hot or cold applications, or when left in direct sunlight for most of their use.

Restrictions and Compliance

  • This item has been restricted from sale in the following states: No
