Mapp Caster

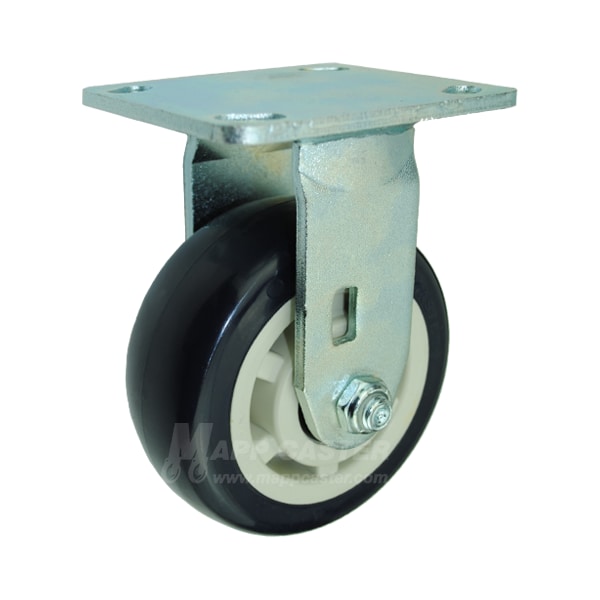

5"X2" Patriot Poly. on Polyolefin Core Wheel Rigid Caster, 800 Lbs Cap

Mapp Caster 5"X2" Patriot Poly. on Polyolefin Core Wheel Rigid Caster,  800 Lbs Cap 146PRX520R
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$27.01
  • Caster Sub-Type: Rigid
  • Overall Height: 6-1/2 in
  • Wheel Bearing Type: Precision Ball
See full product details
Orders over $75 ship free.
Total: $27.01

Mapp Caster #146PRX520R Specifications

  • Caster Sub-Type: Rigid
  • Overall Height: 6-1/2 in
  • Wheel Bearing Type: Precision Ball
  • Mounting Plate Bolt Hole Pattern: 2-5/8 in X 3-5/8 in slotted to 3 in X 3 in
  • Load Capacity: 800 lb
  • Wheel Type: Polyurethane on Polyolefin
  • Caster Frame Material: Cold Rolled Steel
  • Wheel Color: Black
  • Frame Finish: Bright Zinc Plated
  • Mounting Bolt Dia.: 3/8 in or Smaller
  • Weight: 4.1 lb
  • Wheel Diameter: 5 in
  • Tread Width: 2 in
  • Temperature Range: -20°F to 180°F
  • Mounting Plate: 4 in X 4-1/2 in
  • Wheel/Tread Hardness: Shore D 60 (+/-5)
  • Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

Polyurethane on polyolefin wheels offer more floor protection, non-marking treads, quieter rolling, & smoother rides compared to steel or phenolic wheels while still providing comparable load capacities. These polyurethane on polyolefin wheels are going to be the most economically priced of the polyurethane wheels and great for general industrial applications.These wheels can be used in most applications, but are not recommended for hot or cold applications, or when left in direct sunlight for most of their use.

Restrictions and Compliance

  • This item has been restricted from sale in the following states: No
