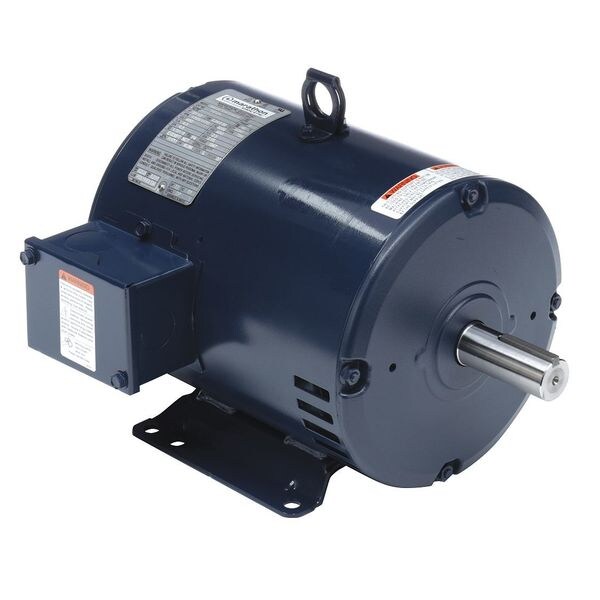

3-Phase Belt Drive Motor, 3, 1 1/3 HP, 184T Frame, 460V AC Voltage, 1,760/1,160 Nameplate RPM (Discontinued)
- Mfr # 184TTDW7215
- Zoro # G5615066
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
184TTDW7215
Zoro #
G5615066
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1 1/8 in
Shaft Length
2 13/16 in
Overall Length
13 11/16 in
Length Less Shaft
10 7/8 in
Description
Belt Drive Motor, Three Phase, Motor Design 3-Phase, 1 1/3, 3 HP, Nameplate RPM 1,760/1,160, No. of Speeds 2, Voltage 460V AC, 4.3,2.5 A Full Load Amps, 184T Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class F, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
