  6. 3-Phase General Purpose Motor, 1/2 hp HP, 56C Frame, 575V AC Voltage, 1,725 Nameplate RPM

This item is Discontinued.

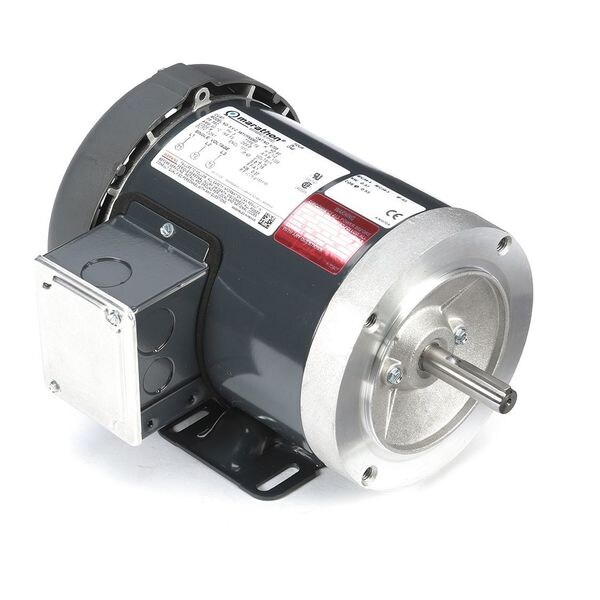

Marathon 3-Phase General Purpose Motor, 1/2 hp HP, 56C Frame, 575V AC Voltage, 1,725 Nameplate RPM 056T17F5336

3-Phase General Purpose Motor, 1/2 hp HP, 56C Frame, 575V AC Voltage, 1,725 Nameplate RPM (Discontinued)

  • Mfr # 056T17F5336
  • Zoro # G5621463
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
056T17F5336
Zoro #
G5621463
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
9 3/4 in
Overall Length
11 13/16 in
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
1 yr

Details

Item
General Purpose Motor
HP
1/2 hp
Nameplate RPM
1,725
Voltage
575V AC
Motor Mounting Type
Face/Base
Full Load Amps
0.96 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
3-Phase
Motor Enclosure Design
Totally Enclosed Fan-Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Application
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
575V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
72.1 %
Standards
CE, CSA, UL Recognized
Duty
Continuous
RPM Group
1701-1800
Frame Material
Rolled steel
Motor Thermal Protection
None
NEMA Design
B
Weight
23 lb
Usable @ 200V
No
Duty Cycle
Continuous
Usable @ 208V
No

Description

General Purpose Motor, 3-Phase, Totally Enclosed Fan-Cooled Motor Enclosure Design, 1/2 hp HP, Nameplate RPM 1,725, Frame 56C, Voltage 575V AC, 60 Hz Hz, Three Phase, Full Load Amps 0.96 A, Face/Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72.1 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
