  6. 3-Phase General Purpose Motor, 2 HP, 56HC Frame, 230/460V AC Voltage, 1725 Nameplate RPM

This item is Discontinued.

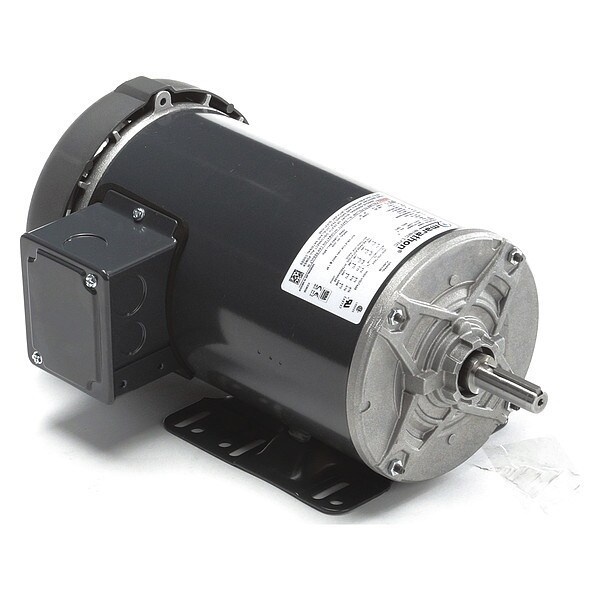

Marathon 3-Phase General Purpose Motor, 2 HP, 56HC Frame, 230/460V AC Voltage, 1725 Nameplate RPM 056T17F15669

3-Phase General Purpose Motor, 2 HP, 56HC Frame, 230/460V AC Voltage, 1725 Nameplate RPM (Discontinued)

  • Mfr # 056T17F15669
  • Zoro # G1591219
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
056T17F15669
Zoro #
G1591219
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Overall Length
15 5/16 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
13 7/16 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Mounting Type
Rigid Base
HP
2
RPM Range
1,701-1,800
Voltage
230/460V AC
Frame
56HC
Motor Thermal Protection
None
Motor Service Factor
1.15
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application
General Application
Motor Design
3-Phase
Nameplate RPM
1,725
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Standards
CE, CSA, UL Recognized
Max. Ambient Temp.
104 Degrees F
Hz
60/50 Hz
Full Load Amps
6.0/3.0 A
Motor Bearings
Ball
No. of Speeds
1
Nominal Efficiency
86.5 %
Ins. Class
B
Duty
Continuous
CC Number
CC003A
Phase
Three
Inverter Rated
No
RPM Group
1701-1800
Green Certification or Other Recognition
NEMA Premium(R) Rated
Duty Cycle
Continuous
Weight
48 lb
RPM @ 50Hz
1,725
Full Load Amps @ 50Hz
6.0/3.0 A
Voltage @ 50Hz
230/460V AC
Usable @ 208V
No
Service Factor @ 50Hz
1.15
HP @ 50Hz
2
Usable @ 200V
No

Description

General Purpose Motor, Three Phase, Motor Design 3-Phase, 2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 6.0/3.0 A, 56HC Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
