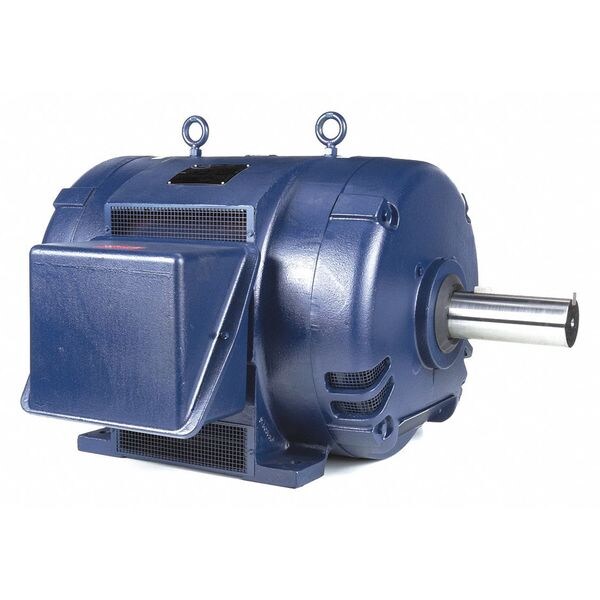

3-Phase General Purpose Motor, 200 HP, 445T Frame, 460 Voltage, 1785 Nameplate RPM (Discontinued)
- Mfr # 445TTDS6060
- Zoro # G9875941
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
445TTDS6060
Zoro #
G9875941
UPC #
-
Country of Origin
United States
Dimensions
Shaft Length
8 1/2 in
Manufacturers Warranty Length
1 yr
Length Less Shaft
31 in
Overall Length
39 3/4 in
Shaft Dia.
3 3/8 in
Description
General Purpose Motor, Three Phase, Motor Design 3-Phase, 200 HP, Nameplate RPM 1785, No. of Speeds 1, Voltage 460, Full Load Amps 225.0, 445T Frame, Hz 60/50, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed, Motor Frame Material Cast Iron
