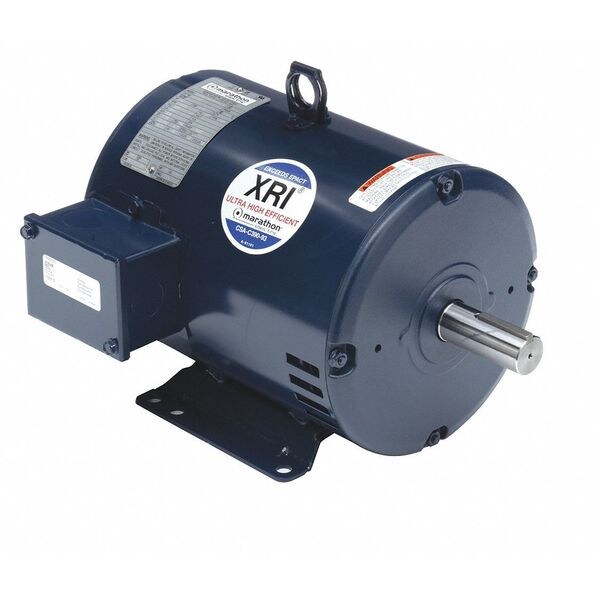

3-Phase General Purpose Motor, 25 HP, 284T Frame, 200 Voltage, 1775 Nameplate RPM (Discontinued)
- Mfr # 284TTDN16052
- Zoro # G7432717
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
284TTDN16052
Zoro #
G7432717
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
24 15/16 in
Shaft Length
4 13/16 in
Length Less Shaft
20 1/8 in
Shaft Dia.
1 7/8 in
Manufacturers Warranty Length
1 yr
Description
General Purpose Motor, Three Phase, Motor Design 3-Phase, 25 HP, Nameplate RPM 1775, No. of Speeds 1, Voltage 200, Full Load Amps 73.5, 284T Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated No, Motor Shaft Design Keyed, Motor Frame Material Cast Iron
