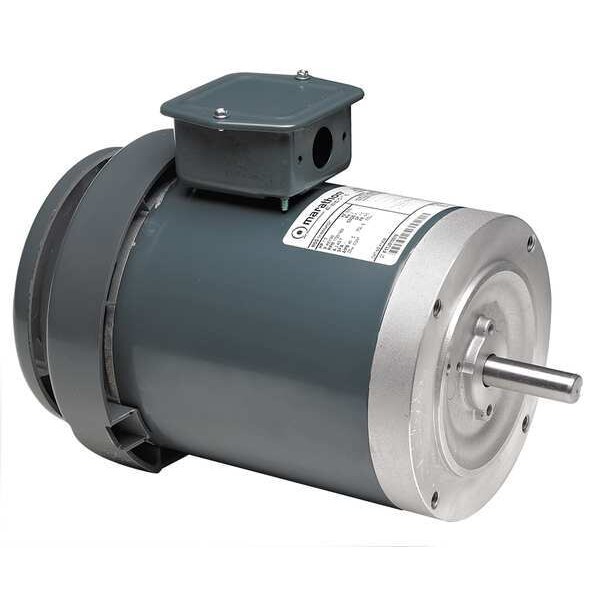

3-Phase General Purpose Motor, 3 HP, 56c Frame, 230/460 Voltage, 3450 Nameplate RPM (Discontinued)
- Mfr # 5K49ZN2189-G
- Zoro # G0762465
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
5K49ZN2189-G
Zoro #
G0762465
UPC #
-
Country of Origin
Multiple
Dimensions
Length Less Shaft
12 3/8 in
Manufacturers Warranty Length
1 yr
Shaft Length
1 7/8 in
Overall Length
14 1/4 in
Shaft Dia.
5/8 in
Description
General Purpose Motor, Three Phase, Motor Design 3-Phase, 3 HP, Nameplate RPM 3450, No. of Speeds 1, Voltage 230/460, Full Load Amps 8.0/4.0, 56C Frame, Hz 60, Motor Service Factor 1.00, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class B, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face, Motor Shaft Design Keyed, Motor Frame Material Rolled Steel
