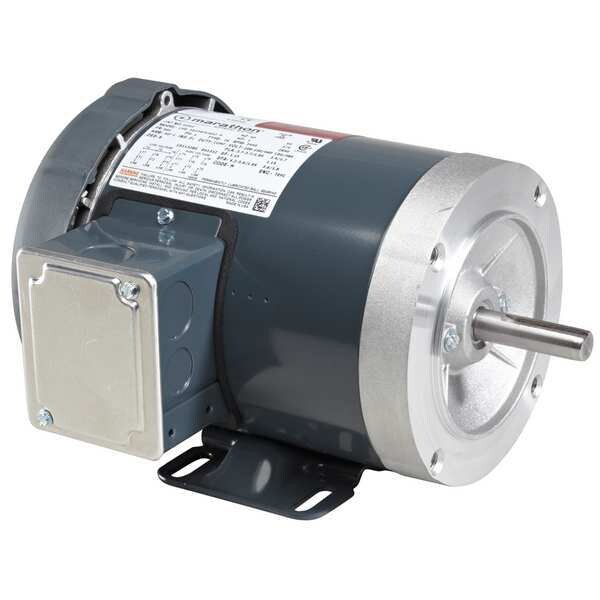

3-Phase General Purpose Motor, 3/4 HP, 56c Frame, 575 Voltage, 3450 Nameplate RPM (Discontinued)
- Mfr # 056T34F5349
- Zoro # G5648027
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
056T34F5349
Zoro #
G5648027
UPC #
-
Country of Origin
Multiple
Dimensions
Length Less Shaft
9 15/16 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
5/8 in
Shaft Length
1 7/8 in
Overall Length
11 13/16 in
Description
General Purpose Motor, Three Phase, Motor Design 3-Phase, 3/4 HP, Nameplate RPM 3450, No. of Speeds 1, Voltage 575, Full Load Amps 1.3, 56C Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class F, NEMA Design B, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Face/Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed, Motor Frame Material Rolled Steel
