  6. 3-Phase General Purpose Motor, 5 HP, 182T Frame, 230/460 Voltage, 3510 Nameplate RPM

This item is Discontinued.

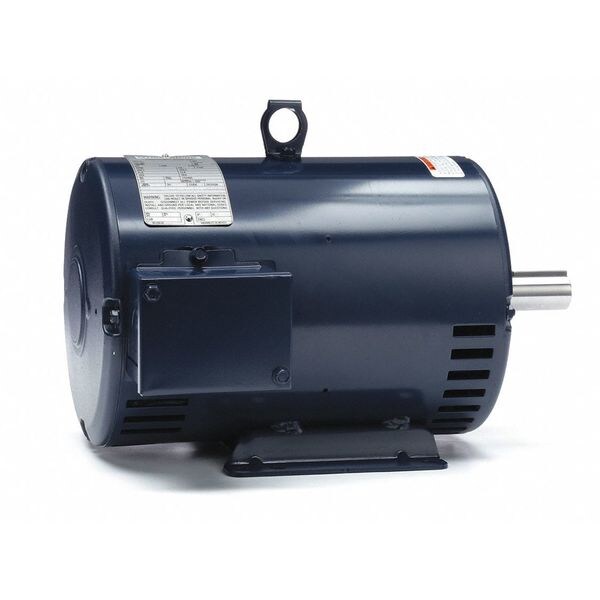

Marathon 3-Phase General Purpose Motor, 5 HP, 182T Frame, 230/460 Voltage, 3510 Nameplate RPM 182TTDW6001

3-Phase General Purpose Motor, 5 HP, 182T Frame, 230/460 Voltage, 3510 Nameplate RPM (Discontinued)

  • Mfr # 182TTDW6001
  • Zoro # G5699565
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
182TTDW6001
Zoro #
G5699565
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1 1/8 in
Manufacturers Warranty Length
1 yr
Overall Length
15 3/16 in
Shaft Length
2 13/16 in
Length Less Shaft
12 3/8 in

Details

Item
General Purpose Motor
Motor Enclosure Design
Open Dripproof
Motor Mounting Type
Rigid Base
HP
5
RPM Range
3,001-3,600
Voltage
230/460V AC
Frame
182T
Motor Thermal Protection
T-Stat
Motor Service Factor
1.15
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Motor Application
General Application
Motor Design
3-Phase
Nameplate RPM
3,510
Motor Shaft Rotation
CW/CCW
Motor Mounting Position
Horizontal
Motor Frame Material
Steel
Motor Shaft Design
Keyed
Standards
CE, CSA (LR2025), UL (E49747)
Max. Ambient Temp.
104 Degrees F
Ins. Class
F
RPM Group
3001-3600
CC Number
CC003A
Motor Bearings
Ball
No. of Speeds
1
Full Load Amps
12.0/6.0 A
Duty
Continuous
Hz
60/50 Hz
Motor Efficiency Group
NEMA Premium Efficient
Frame Material
Rolled steel
Phase
Three
Inverter Rated
Yes
Nominal Efficiency
88.5 %
Capacitor Required
No
NEMA Design
B
Full Load Amps @ 50Hz
6 A
Voltage @ 50Hz
230/460V AC
Usable @ 200V
No
HP @ 50Hz
5
RPM @ 50Hz
3,510
Weight
93 lb
Service Factor @ 50Hz
1.15
Duty Cycle
Continuous
Usable @ 208V
No

Description

General Purpose Motor, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 3,510, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 12.0/6.0 A, 182T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection T-Stat, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
