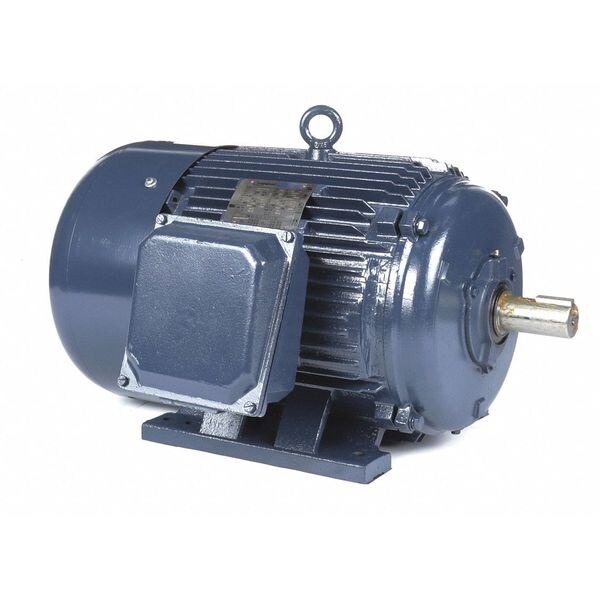

3-Phase General Purpose Motor, 50 HP, 326TS Frame, 230/460 Voltage, 1780 Nameplate RPM (Discontinued)
- Mfr # 326TSTFC6036
- Zoro # G9875266
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
326TSTFC6036
Zoro #
G9875266
UPC #
-
Country of Origin
China
Dimensions
Length Less Shaft
25 1/2 in
Overall Length
29 1/2 in
Shaft Dia.
1 7/8 in
Shaft Length
3 3/4 in
Manufacturers Warranty Length
1 yr
Description
General Purpose Motor, Three Phase, Motor Design 3-Phase, 50 HP, Nameplate RPM 1780, No. of Speeds 1, Voltage 230/460, Full Load Amps 117.0/58.5, 326TS Frame, Hz 60/50, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed, Motor Frame Material Cast Iron
