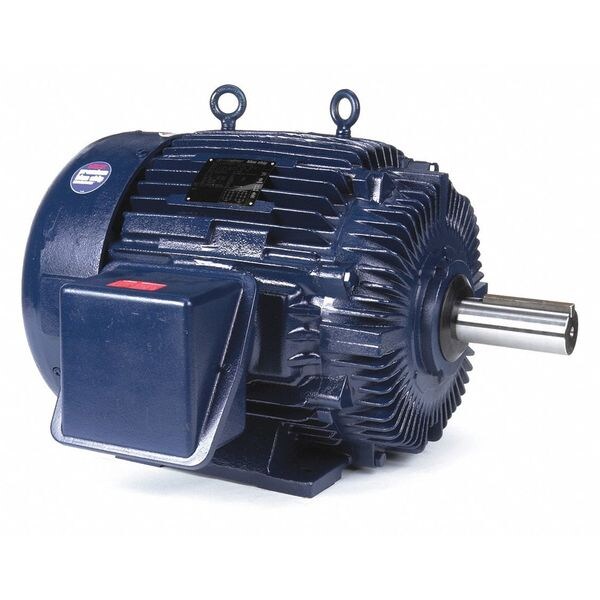

3-Phase General Purpose Motor, 60 HP, 404T Frame, 230/460 Voltage, 1185 Nameplate RPM (Discontinued)
- Mfr # 404TTFS6086
- Zoro # G9875153
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
404TTFS6086
Zoro #
G9875153
UPC #
-
Country of Origin
United States
Dimensions
Length Less Shaft
28 1/8 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
2 7/8 in
Overall Length
35 5/8 in
Shaft Length
7 1/4 in
Description
General Purpose Motor, Three Phase, Motor Design 3-Phase, 60 HP, Nameplate RPM 1185, No. of Speeds 1, Voltage 230/460, Full Load Amps 144.0/72, 404T Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal, Inverter Rated Yes, Motor Shaft Design Keyed, Motor Frame Material Cast Iron
