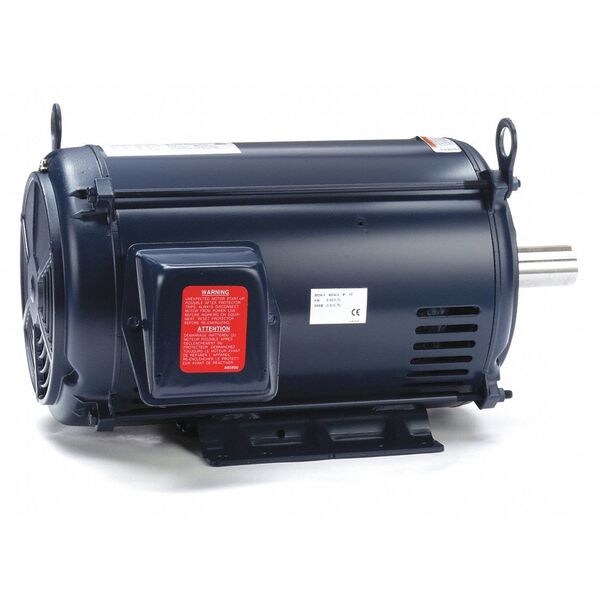

3-Phase General Purpose Motor, 7 1/2 HP, 213T Frame, 230/460V AC Voltage, 1,760 Nameplate RPM (Discontinued)
- Mfr # 213TTDW16060
- Zoro # G6088451
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
213TTDW16060
Zoro #
G6088451
UPC #
-
Country of Origin
Mexico
Dimensions
Overall Length
19 5/16 in
Manufacturers Warranty Length
1 yr
Shaft Length
3 1/2 in
Shaft Dia.
1 3/8 in
Length Less Shaft
15 13/16 in
Description
General Purpose Motor, Three Phase, Motor Design 3-Phase, 7 1/2 HP, Nameplate RPM 1,760, No. of Speeds 1, Voltage 230/460V AC, Full Load Amps 19.2/9.6 A, 213T Frame, Usable @ 208V No, Usable @ 200V No, Hz 60/50 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 104 Degrees F, Motor Thermal Protection Auto, Duty Cycle Continuous, Ins. Class F, NEMA Design B, Motor Enclosure Design Open Dripproof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Mounting Position Horizontal
