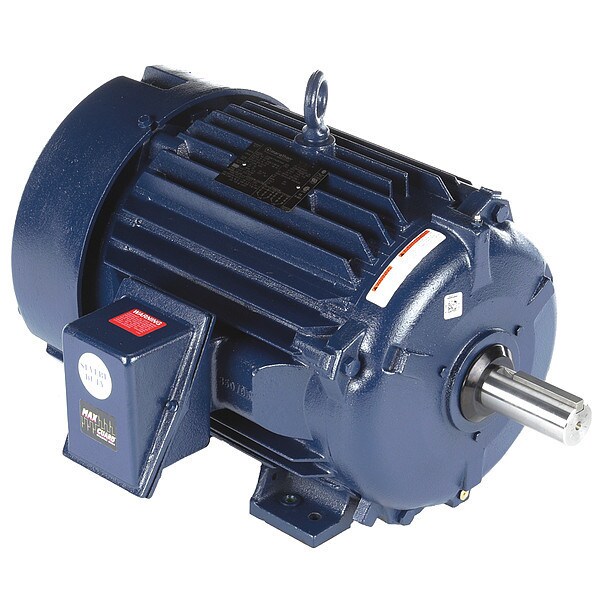

3-Phase Severe Duty Motor, 20 HP, 286T Frame, 230/460 Voltage, 1175 Nameplate RPM (Discontinued)
- Mfr # 286TTFNA6876
- Zoro # G1995730
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
286TTFNA6876
Zoro #
G1995730
UPC #
-
Country of Origin
United States
Dimensions
Length Less Shaft
22 7/8 in
Overall Length
27 11/16 in
Shaft Length
4 13/16 in
Shaft Dia.
1 7/8 in
Lead Length
9" to 8"
Description
Severe Duty Motor, Three Phase, Motor Design 3-Phase, 20 HP, Nameplate RPM 1175, No. of Speeds 1, Voltage 230/460, Full Load Amps 53.5/26.8, 286T Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Shaft Design Keyed, Motor Frame Material Cast Iron
