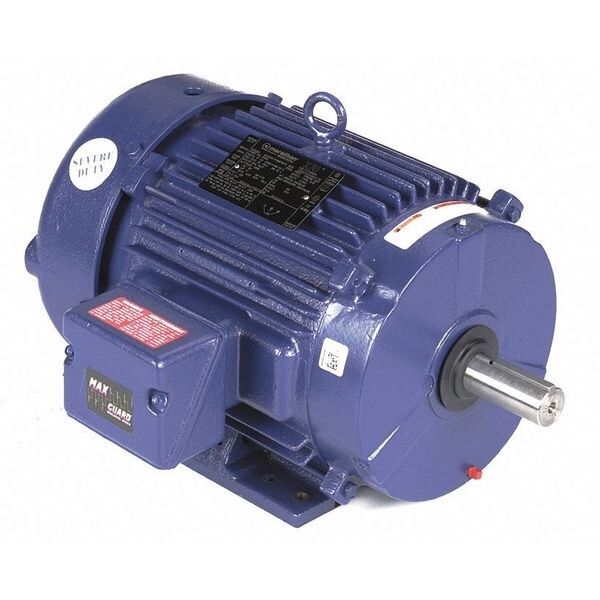

3-Phase Severe Duty Motor, 5 HP, 215T Frame, 230/460 Voltage, 1170 Nameplate RPM (Discontinued)
- Mfr # 215TTFS6576
- Zoro # G9943945
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
215TTFS6576
Zoro #
G9943945
UPC #
-
Country of Origin
United States
Dimensions
Shaft Dia.
1 3/8 in
Shaft Length
3 9/16 in
Length Less Shaft
16 3/16 in
Overall Length
19 3/4 in
Lead Length
3" to 8"
Description
Severe Duty Motor, Three Phase, Motor Design 3-Phase, 5 HP, Nameplate RPM 1170, No. of Speeds 1, Voltage 230/460, Full Load Amps 6.9, 215T Frame, Hz 60, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Ins. Class F, Motor Enclosure Design Totally Enclosed Fan-Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base, Motor Shaft Design Keyed, Motor Frame Material Cast Iron
