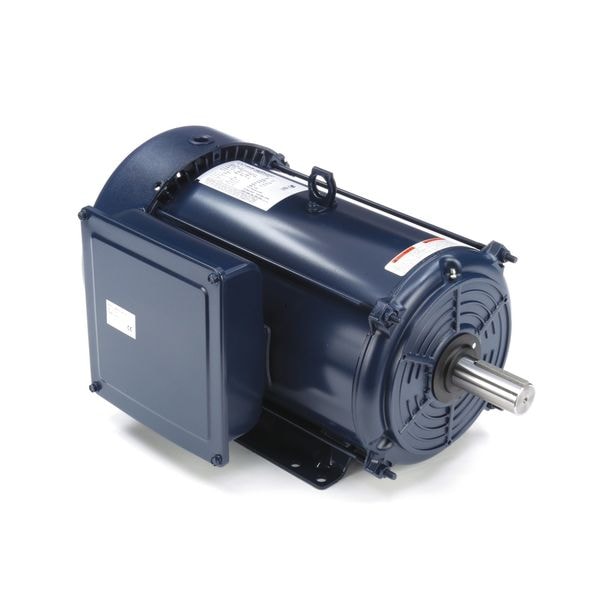

Capacitor-Start/Run General Purpose Motor, 10 hp HP, 230V AC Voltage, 215T Frame
Mfr # 215TBFW7027
Zoro # G5773941
product price: $1,638.06
/ea
Item requires special delivery charges. A $135.00 per item surcharge will be applied.
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
10 hp
RPM Range
1,701-1,800
Voltage
230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215TBFW7027
Zoro #
G5773941
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
21 1/16 in
Length Less Shaft
17 5/8 in
Shaft Length
3 1/2 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
1 3/8 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 10 hp HP, Nameplate RPM 1,759 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 41.5 A, 215T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
