Shop CENTURY

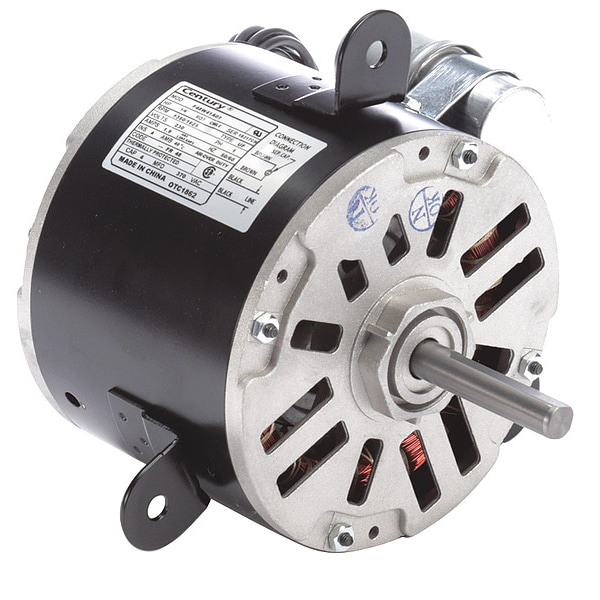

Permanent Split Capacitor OEM Replacement Motor, 1/4 HP, 48 Frame, 230V AC Voltage, No. of Speeds: 1

  • Mfr # OTC1862

  • Zoro # G3260979

product price:  $271.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Semi Enclosed Air-Over
HP
1/4
No. of Speeds
1
RPM Range
1,301-1,400
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
OTC1862
Zoro #
G3260979
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Length Less Shaft
4 13/16 in
Shaft Length
2 3/4 in
Overall Length
7 9/16 in
Body Dia.
5.6 in
Bolt Circle Dia.
7 1/4 in
Frame Size
48
Bolt Circle Diameter
7 1/4 in
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Wire Rope Length
7 9/16 in

Details

Item
OEM Replacement Motor
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Semi Enclosed Air-Over
HP
1/4
No. of Speeds
1
RPM Range
1,301-1,400
Nameplate RPM
1,350/1,625
Voltage
230V AC
Frame
48
Motor Mounting Type
Lug
Motor Thermal Protection
Auto
Motor Service Factor
1
Voltage Compatibility
230V AC
Phase
Single
Motor Application
OEM Replacement
Motor Sub Application
Direct Drive Fan/Blower
Motor Mounting Position
Vertical Shaft Down
Motor Shaft Design
Double-Flat
Motor Shaft Rotation
CCWSE
Hz
50 Hz
Motor Frame Material
Rolled Steel
Ins. Class
A
Full Load Amps
1.9 A
Standards
CSA Certified, UL Recognized
Motor Bearings
Ball
Max. Ambient Temp.
40 Degrees C
Duty Cycle
Continuous
Voltage @ 50Hz
230
Weight
11 lb
Service Factor @ 50Hz
1
RPM @ 50Hz
1,350/1,625
Full Load Amps @ 50Hz
1.9 A
HP @ 50Hz
1/4 hp
Capacitor Required
Capacitor Included
Number of Shafts
1
OEM Replacement Brand
Century
Replacement For
5KCP39CGD151CS, 5KCP39CGN208AS, 5KCP39DGN207AS, 5KCP39EGD150BS, 810E124A51, 810E124B34, 810E186A53, 810E186A82, 810E186B36, 810G124A45, 810G124B30, 810G186B32, 810R124B17, 810R186B15, 810S124B38, 810S186B40, 8330, F42A49A12, F42A50A12, F48W41A01, K55HXGD8330, K55HXKGD8330, K55HXMMF6494, K55HXMRD6565, KA55HXGD8330, KA55HXKGD8330, KA55HXMMF6494, KA55HXMRD6565, N416CCW242, N416CCW245, TFM1862
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Double Flat
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Compatible Brand
Century
Insulation Class
A
Full Load Current @ 60 Hz
1.9 A
Sub Application
Fan/Blower
Product Type
OEM Replacement Motor
Full Load Current @ 50 Hz
1.9 A
Number of Speeds
1
Nameplate Voltage @ 50 Hz
230V AC
Bearing Type
Ball
Mounting Position
Vertical Shaft Down
Nameplate Horsepower @ 50 Hz
1/4 hp
Duty
Continuous
Nameplate Service Factor @ 50 Hz
1

Description

OEM Replacement Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,350/1,625 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 1.9 A, 48 Frame, OEM Replacement Brand Century
