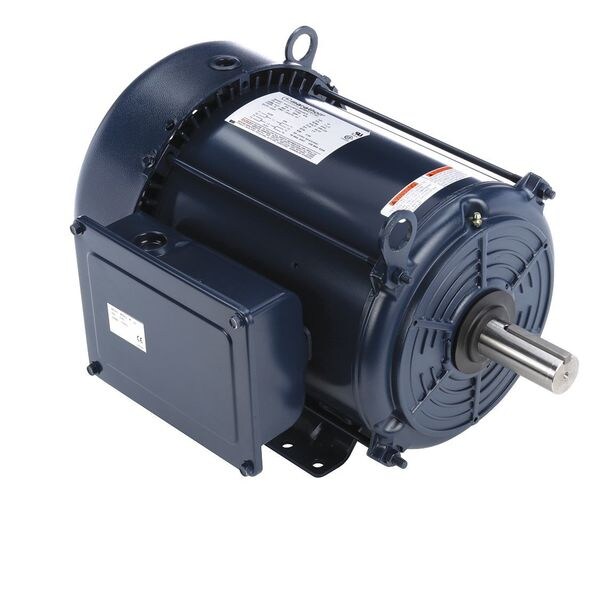

Capacitor-Start/Run General Purpose Motor, 7 1/2 hp HP, 208-230V AC Voltage, 213T Frame
Mfr # 213TBFW7001
Zoro # G5605966
product price: $1,696.99
/ea
Additional $190.00 delivery surcharge applies per item.
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
7 1/2 hp
RPM Range
3,001-3,600
Voltage
208-230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
213TBFW7001
Zoro #
G5605966
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
18 3/4 in
Length Less Shaft
15 1/4 in
Shaft Length
3 1/2 in
Manufacturers Warranty Length
1 yr
Shaft Dia.
1 3/8 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 7 1/2 hp HP, Nameplate RPM 3,465 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 36.0-32.0 A, 213T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
