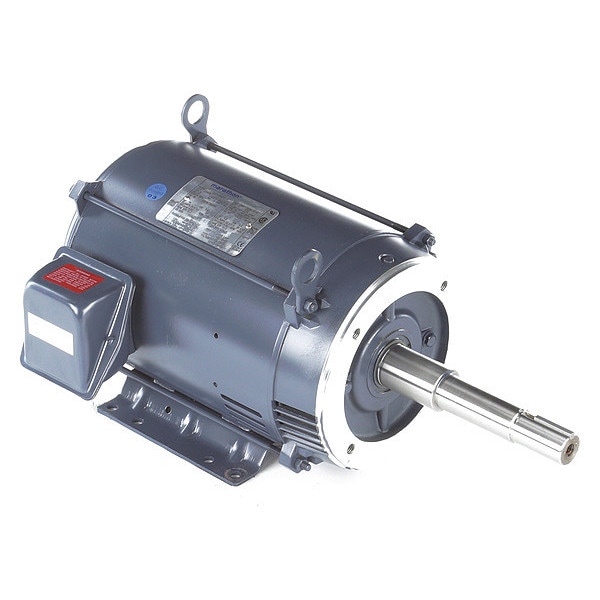

CC Pump Motor, 3-Phase, 10 HP, 1750 rpm
Mfr # 215TTDBD6037
Zoro # G8818975
product price: $1,220.99
/ea
Item requires special delivery charges. A $75.00 per item surcharge will be applied.
Key Features
Motor Design
3-Phase
HP
10
RPM Range
1,701-1,800
Nameplate RPM
1,770
Voltage
230/460V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
215TTDBD6037
Zoro #
G8818975
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1 1/4 in
Length Less Shaft
15 in
Overall Length
23 1/8 in
Shaft Length
8 1/8 in
Bolt Circle Dia.
7 1/4 in
Height
11 in
Body Dia.
9.5 in
Description
Close-Coupled Pump Motor, Body Dia. 9.5 in, Bolt Circle Dia. 7 1/4 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 215JP, Hz 60 Hz, Full Load Amps 25.4/12.7, Height 11 in, HP 10, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 15 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
