Contact our U.S. based teamSpecifications
Product Information
MFR #
143TTDR6030
Zoro #
G5688882
UPC #
-
Country of Origin
Mexico
Dimensions
Length Less Shaft
10 7/8 in
Overall Length
15 1/8 in
Shaft Dia.
7/8 in
Shaft Length
4 1/4 in
Bolt Circle Dia.
5 7/8 in
Height
6 11/16 in
Body Dia.
6.5 in
Description

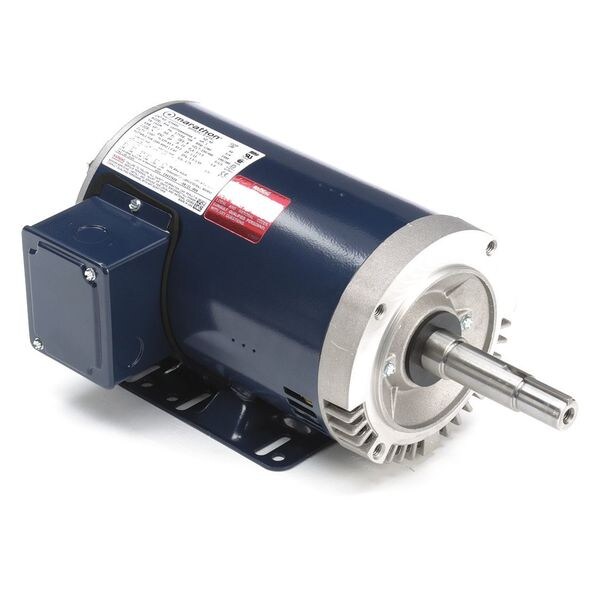

Close-Coupled Pump Motor, Body Dia. 6.5 in, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, Duty Cycle Continuous, Frame 143JM, Hz 60 Hz, Full Load Amps 3.0/1.50, Height 6 11/16 in, HP 1, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 10 7/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
