Shop MARATHON

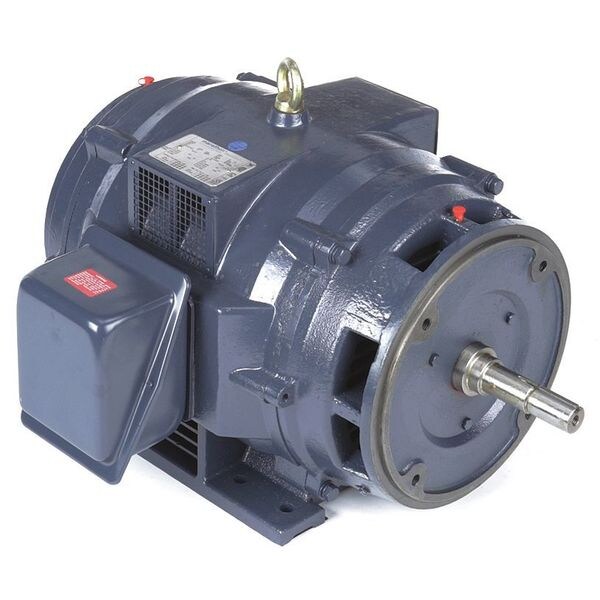

Close-Coupled Pump Motor, 3-Phase, 40 HP

  • Mfr # 324TTDBD6032

  • Zoro # G9922552

product price:  $3,552.99
/ea
Additional $275.00 delivery surcharge applies per item.
See details

Key Features

Motor Design
Three-Phase
HP
40
RPM Range
1,701-1,800
Nameplate RPM
1,780
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
324TTDBD6032
Zoro #
G9922552
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
23 7/16 in
Shaft Length
5 1/2 in
Shaft Dia.
1 1/4 in
Overall Length
28 15/16 in
Body Dia.
15.4 in
Bolt Circle Dia.
11 in
Height
17 15/16 in
Shaft Diameter
1 1/4 in
Body Diameter
15.4 in
Frame Size
324JM
Bolt Circle Diameter
11 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
40
RPM Range
1,701-1,800
Nameplate RPM
1,780
Voltage
230/460V AC
Frame
324JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
Nominal Efficiency
94.1 %
Motor Shaft Rotation
CW/CCW
Frame Material
Steel
Inverter Rated
Inverter Rated
Hz
60 Hz
CC Number
CC003A
Motor Thermal Protection
None
Motor Shaft Design
Keyed, Threaded
Motor Efficiency Group
NEMA Premium Efficient
Standards
CE, CSA, EISA2007, IP 22, UL
Ins. Class
F
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Steel
Phase
Three
Motor Bearings
Ball
Motor Application
Pump
Duty
Continuous
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Full Load Amps
95.5/47.5
Motor Sub Application
Close-Coupled Pump
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Weight
554 lb
Motor Mounting Position
Horizontal
Usable @ 208V
Not Usable at 208V
No. of Speeds
1
Duty Cycle
Continuous
Usable @ 200V
Not Usable at 200V
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Conduit Box Position
F1, F2
Shaft Type
Keyed
Motor Enclosure Type
Open Drip Proof
Shaft Design
Keyed
Constant Torque Rating
2:1 Constant Torque
Application
Pump
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal
Number of Speeds
1
Insulation Class
F
Shaft Thread Type
JM
Full Load Current @ 60 Hz
95.5/47.5 A
NEMA Design Class
B
Bearing Type
Ball
Product Type
Pump Motor
Nameplate Service Factor @ 60 Hz
1.15
Efficiency Rating
Premium Efficiency (IE3)

Description

Close-Coupled Pump Motor, Body Dia. 15.4 in, Bolt Circle Dia. 11 in, CC Number CC003A, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 324JM, Hz 60 Hz, Full Load Amps 95.5/47.5, Height 17 15/16 in, HP 40, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 23 7/16 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase, Motor Efficiency Group NEMA Premium Efficient
