Shop MARATHON

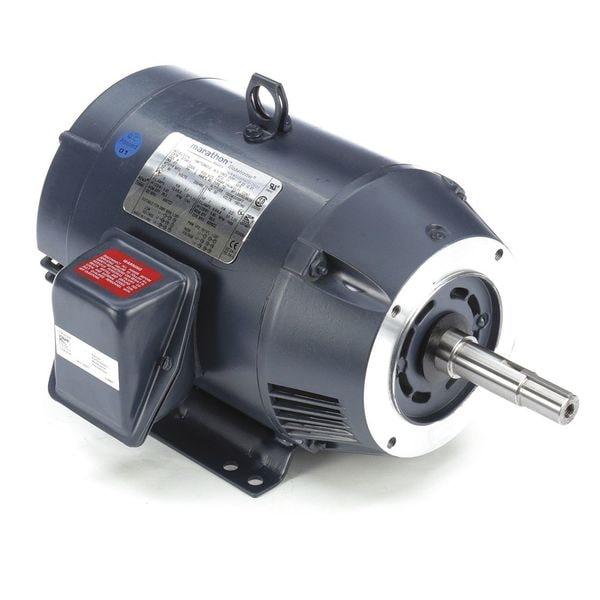

Close-Coupled Pump Motor, 3-Phase, 5 HP

  • Mfr # 184TTDBD6032
  • Zoro # G5522097
product price:
$
791.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
5 hp
RPM Range
1,701-1,800
Nameplate RPM
1,765
Voltage
230V AC, 460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
184TTDBD6032
Zoro #
G5522097
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
4 1/4 in
Shaft Dia.
7/8 in
Overall Length
15 5/8 in
Length Less Shaft
11 3/8 in
Body Dia.
8.4 in
Height
9 13/16 in
Bolt Circle Dia.
5 7/8 in
Bolt Circle Diameter
5 7/8 in
Shaft Diameter
7/8 in
Frame Size
184JM
Body Diameter
8.4 in
Wire Rope Length
15 5/8 in
Length
15 5/8 in

Details

Item
Close-Coupled Pump Motor
Motor Design
Three-Phase
HP
5 hp
RPM Range
1,701-1,800
Nameplate RPM
1,765
Voltage
230V AC, 460V AC
Frame
184JM
Motor Mounting Type
Face/Base
Motor Service Factor
1.15
CC Number
CC003A
Duty
Continuous
Motor Thermal Protection
None
Motor Application
Pump
Ins. Class
F
Motor Shaft Design
JM Threaded
Inverter Rated
Inverter Rated
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 230V AC, 460V AC
Motor Sub Application
Close-Coupled Pump
Motor Shaft Rotation
CW/CCW
Motor Efficiency Group
NEMA Premium Efficient
Frame Material
Steel
Full Load Amps
13.2/6.6 A
Nominal Efficiency
89.5 %
Motor Bearings
Ball
Motor Enclosure Design
Open Dripproof
Hz
60 Hz
Motor Frame Material
Steel
Phase
Three
Standards
CE Mark, CSA Certified, UL Recognized
Max. Ambient Temp.
40 Degrees C
Green Certification or Other Recognition
NEMA Premium(R) Rated
No. of Speeds
1
Weight
70 lb
NEMA Design
A
Conduit Box Location
Exterior
Motor Mounting Position
Horizontal
Duty Cycle
Continuous
Usable @ 208V
Not Usable at 208V
Inverter Rating
10:1 Variable Torque, 2:1 Constant Torque
Usable @ 200V
Not Usable at 200V
Conduit Box Position
F1, F2
Shaft Type
Keyed
Full Load Current @ 60 Hz
13.2/6.6 A
Ambient Temperature - Maximum
40 Degrees C
Product Type
Pump Motor
Bearing Type
Ball
Insulation Class
F
NEMA Design Class
A
Shaft Thread Type
JM
Application
Pump
Shaft Design
Threaded
Constant Torque Rating
2:1 Constant Torque
Number of Speeds
1
Efficiency Rating
Premium Efficiency (IE3)
Motor Enclosure Type
Open Drip Proof
Nameplate Service Factor @ 60 Hz
1.15
Frequency
60 Hz
Mounting Position
Horizontal

Description

Close-Coupled Pump Motor, Body Dia. 8.4 in, Bolt Circle Dia. 5 7/8 in, CC Number CC003A, Conduit Box Location Exterior, Conduit Box Position F1, F2, Duty Cycle Continuous, Frame 184JM, Hz 60 Hz, Full Load Amps 13.2/6.6, Height 9 13/16 in, HP 5, Ins. Class F, Inverter Rated Yes, Inverter Rating 10:1 Variable Torque, 2:1 Constant Torque, Length Less Shaft 11 3/8 in, Max. Ambient Temp. 40 Degrees C, Motor Application Pump, Motor Bearings Ball, Motor Design 3-Phase
