  11. Fire Pump Motor, 60 HP, 3555 RPM, 60 Hz

This item is Discontinued.

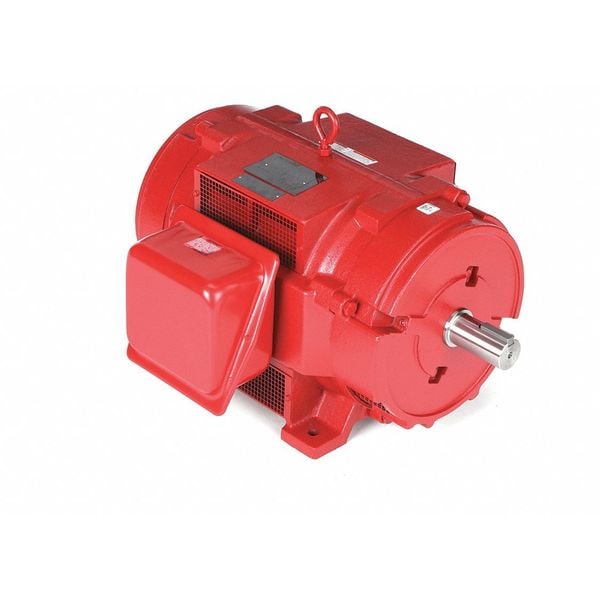

Marathon Fire Pump Motor, 60 HP, 3555 RPM, 60 Hz 326TSTDP4022

Fire Pump Motor, 60 HP, 3555 RPM, 60 Hz (Discontinued)

  • Mfr # 326TSTDP4022
  • Zoro # G9878242
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
326TSTDP4022
Zoro #
G9878242
UPC #
-
Country of Origin
United States

Dimensions

Length Less Shaft
22 1/4 in
Overall Length
26 in
Shaft Dia.
1 7/8 in
Shaft Length
3 3/4 in

Details

Item
Fire Pump Motor
Motor Design
3-Phase
Motor Enclosure Design
Open Dripproof
HP
60
RPM Range
3001-3600
Nameplate RPM
3555
Voltage
200/400
Frame
326TS
Ins. Class
F
Motor Service Factor
1.15
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200/400 50 Hz
Motor Shaft Design
Keyed
No. of Speeds
1
Hz
60
Phase
3
Motor Thermal Protection
None
Standards
UL Listed (EX5190), CSA Certified
Motor Mounting Type
Rigid Base
Motor Mounting Position
Horizontal
Nominal Efficiency
93.0%
Full Load Amps
155.0/77.5
Motor Application
Pump
Motor Sub Application
Fire Pump
Max. Ambient Temp.
50 Degrees C
Motor Bearings
Ball

Description

Fire Pump Motor, 3-Phase, 60 HP, Nameplate RPM 3555, Voltage 200/400, 3 Phase, Frame 326TS, Open Dripproof, No. of Speeds 1, Full Load Amps 155.0/77.5, 60 Hz, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Max. Ambient Temp. 50 Degrees C, Motor Shaft Rotation CW/CCW, Overall Length 26 in, Shaft Dia. 1 7/8 in, Shaft Length 3 3/4 in
