  6. General Purpose Farm Duty Motor, Split-Phase, 1/4 HP, 115V AC, 1,140 Nameplate RPM, 56 Frame

This item is Discontinued.

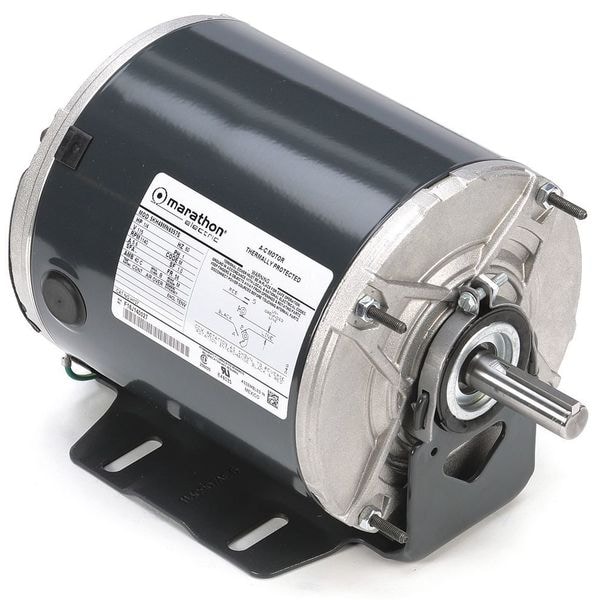

Marathon General Purpose Farm Duty Motor, Split-Phase, 1/4 HP, 115V AC, 1,140 Nameplate RPM, 56 Frame 5KH49MN6057S

General Purpose Farm Duty Motor, Split-Phase, 1/4 HP, 115V AC, 1,140 Nameplate RPM, 56 Frame (Discontinued)

  • Mfr # 5KH49MN6057S
  • Zoro # G6091933
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5KH49MN6057S
Zoro #
G6091933
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Length Less Shaft
8 5/8 in
Overall Length
10 1/2 in
Stud Size
#10-32

Details

Item
General Purpose Farm Duty Motor
Motor Design
Split-Phase
Phase
Single
HP
1/4
RPM Range
1,101-1,200
Voltage
115V AC
Frame
56
Motor Service Factor
1
Motor Thermal Protection
Auto
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Nameplate RPM
1,140
Motor Application
Farm Duty
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Mounting Type
Cradle Base
Motor Shaft Design
Keyed
Motor Sub Application
Direct Drive Fan/Blower
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified, UL Recognized
Full Load Amps
5.6 A
Ins. Class
B
Item - Farm Duty Motors
General Purpose Farm Duty Motor
Hz
60 Hz
Duty
Continuous
Max. Ambient Temperature
40 Degrees C
Capacitor Required
No
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Bearings
Ball
Frame Material
Rolled steel
Nominal Efficiency
53 %
Usable @ 208V
No
Mounting Stud Pattern
4 3/16 in x 4 3/16 in
Weight
22 lb
No. of Speeds
1
Max. Ambient Temp.
40 Degrees C
Usable @ 200V
No
Duty Cycle
Continuous
Application
Comm. Fan Blower

Description

General Purpose Farm Duty Motor, Single Phase, Motor Design Split-Phase, 1/4 HP, Nameplate RPM 1,140, No. of Speeds 1, Voltage 115V AC, Full Load Amps 5.6 A, 56 Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
